high Frequency PCB

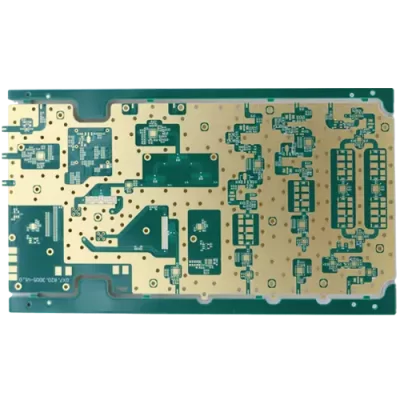

High Frequency PCB(RF PCB) for satellite communications & 5G Applications
- SprintPCB provides High Frequency PCB solutions designed for RF circuits, 5G modules, antennas, radar systems, and high-speed communication devices.
RF PCB/High speed PCB Materials & Performance
We work with premium materials such as Rogers 4350B, 4003C, PTFE laminates, and hybrid stack-ups combining FR4 and high-frequency materials.
Applications
RF modules & antennas
Aerospace electronics
Radar and satellite systems
Telecom & 5G Infrastructure
Medical Imaging
Such as High Frequency PCB for radar and avionics; Impedance Control PCB and High Speed PCB for satellite communications;High Frequency PCB and Amplifier PCB for 5G base stations; Mixed Laminate PCB for RF front-end modules; RF High-speed PCB for UAV signal processing modules; Microwave PCB used in satellite communication Power Amplifiers (PAs) modules; High-frequency Rogers PCBs for Magnetic Resonance Imaging (MRI) machines in medical diagnostic imaging equipment.
High Frequency PCB Capabilities
| Technology type | Process capability |
| Frequency range | 1–30 GHz |
| Materials | Low Dk/Df materials |
| RF routing | Tight tolerance for RF routing |
| Copper options | Smooth copper options |
| Other | Precise impedance control |
PCB Roadmap
| Feature | Prototype production | Mass production | R&D |
| Layers count | 1-40 | 1-20 | 60 |
| Minimum board thickness (with solder mask) | 0.3mm | 0.6mm | 0.20mm |
| Maximum board thickness | 6mm | 4mm | 10mm |
| Maximum board size | 546mm x 622mm | 457mm x 610mm | 1250mm x 570mm |
| Minimum line/space innerlayer (depends on copper weight) | 2.5mil/2.5mil | 3mil/3mil | 2mil/2mil |
| Surface finish types | OSP, HASL, ENIG, Immersion Silver, Immersion Tin, Hard gold (Connector board), hard gold (Selective board), soft gold, ENEPIG | OSP, HASL, ENIG, Immersion Silver, Immersion Tin, Hard gold (Connector board), hard gold (Selective board), soft gold, ENEPIG | OSP, HASL, ENIG, Immersion Silver, Immersion Tin, Hard gold (Connector board), hard gold (Selective board), soft gold, ENEPIG |
| Mechanical hole size (Finish hole size) | 0.15 mm | 0.2 mm | 0.1 mm |
| Maximum aspect ratio PTH | 20:01 | 12:01 | 20 |
| Finished tolerance PTH | +/-0.075 mm | +/-0.05 mm | +/-0.025 mm |
| Finished tolerance NPTH | +/-0.05 mm | +/-0.025 mm | +/-0.015 mm |
| Epoxy filled through holes (Y/N) | Y | Y | Y |
| Capped via (Heat dissipation) (Y/N) | Y | Y | Y |
PCB Delivery Time
| PCB Quantity (㎡) | 2-10 Layer PCB Delivery Time | 12-20 Layer PCB Delivery Time |
| ＜1㎡ | 1 – 8 days | 4 – 13 days |
| 1 ㎡ – 5 ㎡ | 2 – 10 days | 5 – 15 days |
| 6 ㎡ – 20 ㎡ | 4 – 15 days | 7 – 19 days |
| ≥20㎡ | 7 – 18 days | 10 – 23 days |
