Microgrid Controller PCB Failures Traced to Layer Stack-Up: Why Grid-Tied Systems Cannot Run on Standard FR4
- sprintpcbgroup

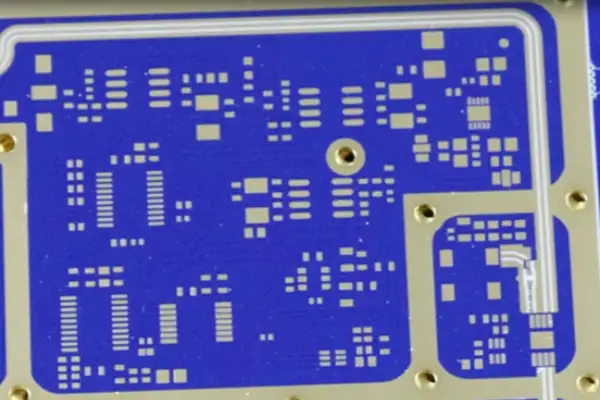

Why a Microgrid Controller PCB Is the Physical Floor Beneath Every Energy-Management Strategy
Not long ago, on a project, one of our Microgrid Controller PCBs kept showing problems during grid-tied testing — severe signal jitter. After investigation, it turned out to have nothing to do with the software algorithm at all — the board’s own interlayer insulation simply could not withstand the sustained impact of transient surges on the grid side. After that incident, I completely stopped believing in the so-called “good enough” cheap multilayer board suppliers. A microgrid controller, bluntly put, has to switch back and forth between the grid and its own generation, while also coordinating a whole pile of things — storage, PV, diesel generation. What runs on the PCB is not just a few low-voltage signals — in many cases, the isolation distance between strong and weak electrical circuits, grounding strategy, even copper thickness all have to be calculated against the worst-case islanded black-start scenario. Find a multilayer PCB manufacturer unfamiliar with power-electronics operating conditions, and they will build you an 8-layer board with standard FR4 that looks fine on the surface, with all traces connected — but once actually deployed on a grid node, ripple and electromagnetic interference can wreck sampling accuracy completely.
We later switched suppliers to one specializing in industrial power supplies and power-system boards. Multilayer board unit price went up, but their lamination structure and dielectric selection were noticeably better suited to a scenario that stays energized long-term and must withstand grid-tied/islanded switching shocks. My current habit is: whenever a Microgrid Controller PCB is involved, before selecting a multilayer PCB supplier, I always have them provide prior case studies of similar grid-interface boards — not just check how many layers they can produce or how fine a trace width they can achieve. If a circuit board cannot withstand the harmonics and transient overvoltage that frequently occur on the grid side, no matter how good the energy-management strategy is, it is all wasted effort. At the end of the day, this kind of board is the physical bottom line of the entire microgrid — without it, the system cannot even achieve basic stability, let alone talk about black-start or islanding-detection speed.
Common-Mode Noise From Poor Ground Return Planning: An 8-Layer Redesign Case
Having handled a few microgrid projects over the years, my biggest takeaway is that many people think of microgrid-controller development too much like assembling a computer. Find a multilayer PCB manufacturer for prototyping, drop in a decent ARM or FPGA, pull out a few RS485 and CAN ports, and expect the inverters, storage and diesel generator to obediently fall in line. But once actually running, the moment grid voltage flicker occurs or multiple inverters fight over power, you realize it is nothing like that at all.
The thing that tripped me up the most was the PCB stack-up selection. Early on, we thought a six-layer board was sufficient, with routing all connected — but because the controller had to simultaneously handle high-speed instantaneous power regulation and relatively slow-speed energy scheduling, the ground-plane return path was not properly planned, and the moment an inverter started up, obvious common-mode noise appeared on the analog sampling channel. Despite writing dead-time protection into the algorithm, the inverter still oscillated inexplicably. We later switched to a more experienced multilayer PCB supplier, and following their advice, went to an 8-layer board for the critical analog region, adding a dedicated reference ground layer, and strictly separating power ground from signal ground — that finally suppressed the noise. This made me realize that a Microgrid Controller PCB is not simply “connecting the wires” — it has to provide a clean enough hardware environment for a millisecond-level control loop.
Another commonly overlooked point is inverter-interface compatibility. Different inverter brands on the market use a wide variety of communication protocols — some use Modbus RTU, some CANopen, some Ethernet — but the physical layer is often the same handful of transceiver chips. If isolation and protection are not thoroughly implemented at the PCB design stage, high-frequency interference from lightning strikes or switching operations can easily damage the controller along the communication line. We got burned by this on an island project — the communication interface burned out, and the entire zone lost power directly. We later mandated that all external interfaces must have at least 2.5kV magnetic isolation, with a dedicated overvoltage-clamping circuit reserved on the PCB — a bit more cost, but a noticeable reliability improvement.
On the topic of choosing a multilayer PCB manufacturer and supplier, I lean toward finding shops that genuinely understand power-electronics applications, rather than a contract manufacturer that only produces to the drawing. Because a microgrid controller faces an extremely harsh electromagnetic environment — the grid — and if a supplier lacks relevant experience in impedance control, via parasitic parameters, and high-voltage creepage distance, they simply will not remind you where problems might occur. I saw a counter-example once: a supplier, to save cost, arbitrarily thinned the prepreg thickness between the power layer and ground layer, and withstand-voltage testing broke through directly, scrapping the entire batch. So now, when auditing a supplier, I do not just look at quote and lead time — I also check whether they have built PCBs for products like inverters and variable-frequency drives, and whether they have the capability to run impedance testing and partial-discharge testing.
At the end of the day, a Microgrid Controller PCB carries the most core coordination task in the entire system: it must obey grid dispatch, while also, within milliseconds of a grid fault, shedding load and operating independently, and, during black start, act like a band conductor waking up the inverters, storage and diesel generator one by one. All these functions ultimately land on a single circuit board — a single overlooked hardware detail can amplify into a serious system-level accident. That is exactly why I increasingly believe this board deserves the best multilayer PCB process and the most reliable supplier — do not cut costs on hardware, because what you cut invariably comes back as endless downstream trouble.
Splitting Real-Time Control From Application Processing Across Separate Boards
A project not long ago completely changed my view of microgrid-controller PCBs. I used to think a control board was just a matter of finding a decent-enough multilayer board supplier for prototyping — and we nearly ran into a major problem as a result. We were building an islanded microgrid, sustained by PV inverters and storage converters — that Microgrid Controller PCB had to simultaneously process real-time data from seven or eight inverters, while also switching to islanded mode within a few dozen milliseconds of a grid fault. The board came back, got soldered and tested, and inverter response kept showing jitter — three days of investigation revealed a certain multilayer board manufacturer’s inner-layer copper-thickness uniformity did not meet spec, causing high-speed signal reflection. After switching to a multilayer board supplier specializing in industrial control, those mysterious problems disappeared. Talking with peers afterward, everyone had similar experiences — a Microgrid Controller PCB cannot be built the same way as a generic industrial control board; it has to withstand the high-frequency harmonic environment generated by inverters, while also guaranteeing logic stays sane under grid transient interference. So now, when I choose a PCB manufacturer, I first check whether they have built power-electronics boards before, how strong their stack-up design capability is, and I even go inspect the factory’s impedance test reports. Many engineers think the inverter itself is the core — but in reality, that unassuming PCB is what determines whether the entire microgrid system can run stably.
Having worked on microgrid-controller hardware for a long time, at least half the traps I have fallen into relate to the PCB. Many people think this kind of controller is just drawing a board and connecting the MCU to the communication port — that is nothing close to the reality. The most demanding aspect of a Microgrid Controller PCB is that it has to simultaneously run the real-time control loop and upper-level Linux scheduling — a millisecond of delay in power allocation can cause circulating current between inverters, and burning out a module is a matter of moments. So when choosing a multilayer PCB manufacturer, I never look at price first — I look at whether they can reliably build impedance-controlled boards above 6 layers, and whether they can meet my requirements for differential-pair length matching. Once, chasing a lower price, I switched to a multilayer PCB supplier, and ground-bounce noise destroyed CAN bus frames — communication between the controller and the inverter dropped packets, that inverter dropped off the grid outright, and the entire system nearly collapsed.
I learned my lesson afterward — building the controller-to-inverter interface section as a dedicated 4-layer board, with the processor and FPGA side on an 8-layer board, connected via high-speed pin headers in between, with power and ground layers clearly separated in the stack-up. Real-time performance is not achieved by fighting for a higher clock speed — it comes from hardware architecture shortening the interrupt-response path. I ran a comparison: with the identical control algorithm, a poorly laid-out board showed interrupt latency reaching hundreds of nanoseconds; after optimization, that dropped under 20 nanoseconds, and inverter output-waveform ripple visibly decreased. So real-time hardware performance is half a gift from the PCB.
Now, when negotiating with suppliers, I open by asking whether they can do localized mixed-material lamination, combining FR4 and high-speed laminate in the same press cycle, because the controller has both a high-current power region and gigabit-Ethernet high-speed signals — using one material for everything no longer works. Do not trust “factory-recommended stack-up” blindly either — calculate impedance and current-carrying capacity yourself first to feel confident. At the end of the day, a microgrid controller is not a toy — it manages life-or-death matters like black start and grid-tied/islanded switching, and a reliable PCB matters far more than how flashy the algorithm is.
Magnetic Field Coupling Into CAN Bus: A Power-Trace Layout Lesson
Having handled several microgrid cases, I increasingly believe the controller boards are the most underrated component in the entire system. Many people jump straight into obsessing over inverter topology and power-module selection, arguing over SiC versus IGBT all afternoon — yet the moment it comes to the controller PCB, they think “find a decent-enough multilayer board shop for prototyping.” Once running on site, all the problems trace back to this “decent-enough” board.
On one project, the Microgrid Controller PCB initially used a six-layer board, with routing done casually — analog ground and digital ground split without much thought, and no isolation treatment on the power layer. The prototype ran smoothly in the lab, but on site, the moment an inverter started, controller sampling began jumping, with power readings on-screen looking like an EKG. Two days of investigation eventually revealed that the board’s ground-layer return path had led the inverter’s high-frequency noise directly to the ADC front end. What could we do? We had to revise the board overnight, finding a trustworthy multilayer board supplier to redo it. The lesson from that incident: microgrid control is not something you can just get the algorithm right and call done — the physical world on the board is far less forgiving than code.
On the subject of multilayer boards, I now draw a very clear line between a multilayer PCB manufacturer and a multilayer PCB supplier. Some shops only qualify as a supplier — they build whatever file you give them, with impedance control entirely dependent on the parameters you provide, and if process deviation is large, the resulting board’s characteristics drift. A genuine manufacturer will argue with you about the stack-up structure, telling you “at this trace width, running this data rate on FR4, your signal-to-noise ratio might be insufficient — should we switch to high-speed material?” The shop we eventually worked with directly suggested using magnetic isolation with an independent power island for the interface between the control board and the inverter side, physically separating digital ground from power ground, and specifically reinforcing copper thickness in the power loop region. These details cannot be summarized by the four words “multilayer board manufacturer” — you need to run into an engineer genuinely willing to hash out technical details with you.
Implementing control logic on the board also went through a wrong turn. In one design revision, we crammed inverter control, grid-tied/islanded switching logic and power scheduling all into a single main controller chip, thinking it would reduce board-to-board communication and keep the architecture clean. In reality, real-time performance simply could not hold up, because the inverter’s voltage loop needs to run at the microsecond level, while power scheduling processes data at the second or even minute level — cramming both onto one core meant clock interrupts interfered with each other, and inverter output waveform would occasionally jitter. We later learned our lesson and honestly split control apart — using a dedicated Cortex-M7 for the inverter side’s current loop and PWM, with a separate application processor hanging off it to handle EMS and communication. Board area increased slightly, but stability improved dramatically. So now I strongly dislike the “one chip solves everything” mindset — things that are physically inseparable need to trade space for time on the PCB.
Power-related routing is also the most commonly stepped-on trap on a Microgrid Controller PCB. You might not think the controller itself carries high current directly, but the moment an inverter operates, the spatial magnetic field changes, and the copper foil on the board becomes a series of small antennas. On one project, the controller was mounted in a cabinet about ten centimeters from the inverter’s power module — the moment power was applied, the CAN bus kept dropping frames. A long investigation revealed that during power-loop switching, the magnetic field coupled onto the CAN trace, pulling the differential signal’s common-mode voltage off-target. We eventually re-routed the board, moving the CAN traces to an inner layer, wrapped in ground on both sides, with a common-mode choke added — that finally settled things. This kind of problem — you will not find it in any textbook, no matter how much you search; the only thing you can rely on is your own accumulated trial and error, and a multilayer board manufacturer willing to work through those trials alongside you.
Now, when choosing a multilayer PCB supplier, I basically do not discuss unit price first — I ask three things: do you provide impedance test reports? Do you have alternative stack-up material options? Can you accept small-batch, repeated prototyping runs? Microgrid-controller boards are not high-volume, but once a problem occurs, the cost of replacing the board plus re-debugging far exceeds the sample fee. Especially in scenarios involving inverter control, parameters like creepage distance and insulation withstand voltage on the board are not guaranteed just by drawing a box on the schematic — they depend on the factory’s process stability to back you up. Some suppliers say they can do it, and the board that comes back has crooked silkscreen and solder mask so thin it is translucent — would you dare install that on site? So the supplier I eventually settled with, even at 30% higher price, always provides CTI test reports, with traceable material batches, and can recommend a lamination structure based on our power level — money well spent.
Bus Speed Myths: Why Local Droop Control Beats Chasing EtherCAT
Back when I was building microgrid controllers, the biggest headache was never topology or algorithms — it was the board itself. Most people jump straight into thinking about which inverter to use, how to adjust power, but what genuinely holds you back is often that Microgrid Controller PCB. You have to imagine it as the entire system’s spine — voltage sampling, communication buses and protection logic all run on it, and a single ground bounce or crosstalk can make the inverter simply stop working outright during an islanded switch.
I later found a trustworthy multilayer PCB manufacturer, and that finally settled the problem. Not every multilayer board supplier can fully grasp the requirements of this kind of mixed-signal board — creepage distance on the high-voltage side, isolated power-supply layout, digital/analog ground splitting — these details are understood only by shops that have genuinely built power-electronics boards before. The multilayer PCB supplier I partnered with even proactively suggested changing the CAN FD transceiver and RS-485 isolated power to independent slotted regions, saying this would suppress common-mode transients — and indeed, the bus deadlock issue that had occasionally occurred before disappeared completely.
On the subject of buses, when it comes to inverter coordination, I think many people are excessively obsessed with speed. Anyone who has done this before knows a 10ms control cycle sounds impressive, but if your power-allocation strategy itself never accounted for line-impedance differences, no matter how fast the communication is, it is wasted effort. I lean more toward working on local droop control at the inverter, letting the bus handle only slow-speed secondary frequency-regulation signals, offloading the burden of fast regulation to the local controller — this way, even if communication briefly drops, the inverter can still keep power stable on its own. As for those constantly pushing EtherCAT, I think unless your inverter count exceeds twenty, you are just creating trouble for yourself — the debugging time alone would be enough to swap two entire sets of boards.
I have been working on a microgrid project recently, and staring at that Microgrid Controller PCB for a long while, I suddenly felt this thing has been overhyped by a lot of people. The market constantly talks about “seamless switching,” “millisecond-level response,” as if stacking on an FPGA and a high-speed bus solves everything. But in reality, what genuinely holds you back is often that unassuming physical layer — who built your multilayer board, and whether the copper-thickness and interlayer-registration process is actually stable.
I fell into a big trap once — the phase-synchronization section. When an inverter switches from grid-tied to islanded, if phase gets even slightly misaligned, circulating current shoots up — I burned a prototype once because of it. A long investigation revealed it was not a control-algorithm problem at all — it was that a few differential-pair traces on the PCB had not been length-matched. Can you believe it — just a few extra mils of trace delay, and the phase locked out by the PLL was off — the inrush current at the instant of inverter switching was frighteningly large. I later switched to a multilayer board supplier specializing in industrial control — not the kind that prototypes cheaply but with uneven dielectric layers — they ran impedance-matching tests and provided a TDR report, and only then did I suppress the phase-jitter problem.
Phase Synchronization Failures Traced to Differential Pair Length Mismatch
So when people ask me now how to choose a microgrid controller, my first response is never to look at DSP or ARM specs — first go discuss clearly with your multilayer PCB manufacturer, and specifically ask whether they can guarantee batch-to-batch consistency in interlayer dielectric thickness. Many PCB shops, to save cost, use prepreg stacked up in a way that produces a large deviation in actual thickness — this directly affects your microstrip and stripline impedance, which then shows up in the inverter output as tiny amplitude and phase drift. One or two units is not a problem, but paralleling four or five, circulating current becomes unmanageable — and then you have to rely on software to fix it. Can software actually fix it? Even if it can, your MCU resources will be nearly exhausted trying.
Hardwiring the P-to-V/f Transition: Bypassing Bus Arbitration Entirely
There is also the switching logic — my current approach is to give hardware priority as much as possible, rather than relying on software to make the judgment. On the Microgrid Controller PCB, I run a dedicated high-speed hardwired channel for the main storage inverter, bypassing any bus arbitration entirely — pulling straight from the grid zero-crossing detection circuit to an independent logic gate, which, once triggered, directly switches the inverter from P mode to V/f mode. The underlying latency of this response, measured in practice, can reach a few microseconds — far faster than any scheme routed through a communication protocol. There is no magical algorithm behind this — it is simply having the multilayer PCB supplier route this signal line on an inner layer, sandwiched top and bottom by a complete ground plane, with no power signal running alongside it — a clean, single line with zero interference.
Some people put blind faith in wireless paralleling and droop control, thinking it saves communication wiring, but my experience is that during sudden load changes, an inverter relying purely on droop control shows noticeable oscillation during the frequency-recovery phase — and that oscillation lands right on the PCB’s current-sampling path. If the ground plane is not well split, the sampling signal gets mixed with power-frequency common-mode noise, and you cannot even measure real current accurately, let alone suppress circulating current. So when I draw this board myself, I split analog ground from digital ground especially clearly, joining them only at a single point near the battery interface, with ground vias placed densely, minimizing the return path’s inductance as much as possible — that is more effective than any advanced algorithm.
At the end of the day, multilayer boards, for a microgrid controller, are not simply about connecting the wires. Interlayer capacitance, edge-field coupling, warpage under thermal stress — all of it slowly affects the reliability of your inverter switching. I later settled on one multilayer PCB supplier permanently — their production line has AOI plus flying-probe testing, and every shipment comes with a cross-section analysis report — that is what lets me confidently install the board into a cabinet and run it for six months without a single restart. The after-sales cost saved through this far exceeds the extra material cost paid upfront.
So if anyone tells me now that building a microgrid controller is just piling on algorithms and communication protocols, I suggest they go stare at the phase noise and stack-up structure on their own board first. Get the physical layer right, and inverter switching has real confidence behind it — otherwise, no matter how well the closed loop runs in the lab, once temperature changes in the field, anything could go wrong.
Black-Start Sequencing: Why a Coin-Cell Backup Is Not Enough
Working on microgrid controllers for these years, the biggest trap I fell into was never in the algorithm — it was the Microgrid Controller PCB itself. Many people think the controller just needs good software, running it on whatever off-the-shelf board is available — that is nothing close to reality. Grid-side and load-side signals are all crammed onto one board, and if the analog front end is laid out even slightly poorly, sampling drifts unusably — let alone islanding detection, which needs to catch tiny changes in voltage frequency.
I eventually re-selected entirely, finding a multilayer PCB manufacturer specializing in industrial control — not the kind that only takes high-volume consumer-electronics orders. On the multilayer-board stack-up structure, they could adjust based on your signal flow direction, rather than rigidly piling on 8 or 10 layers by default. There is a lesson I still remember clearly: during the startup phase, as the storage inverter builds up voltage, surge and ground bounce on the board can reset the DSP directly, because the power layer and ground layer were not tightly coupled at critical locations. Working with an unfamiliar multilayer PCB supplier, this kind of thing is something they will simply never flag for you — they only build to the Gerber file, and if problems occur, you bear the consequences yourself.
Load switching is another headache. The controller has to manage several channels of digital output simultaneously — cutting non-critical loads, protecting critical ones — and if the relay-driver loop lacks isolation, back-EMF can sneak in and destabilize the entire board. On my board, during black-start testing, the first time full power was cut and reapplied, the backup battery’s switching circuit responded just slightly too slowly, and the controller lost power outright, throwing the startup sequence into chaos. This was because I had not left adequate margin in the power tree, and did not commit to using a supercapacitor, relying instead on a single coin-cell battery — far too naive. So now, looking at a Microgrid Controller PCB again, I believe it is not really a control board at all — it is the nerve ending of the entire microgrid’s physical world, and any single oversight will show its true colors the moment a grid-tied or islanded switch occurs.
PLD-Locked Startup Logic and True Communication Redundancy Between Storage and Genset
Working on microgrid control, many people initially underestimate the PCB’s complexity. I was the same way at first, assuming it was just a matter of connecting a few communication interfaces to the MCU, and a two-layer board would be enough. Once the project actually ran, CAN bus interference from the storage inverter and surge at the instant of diesel-generator startup completely stunned the board. Only after that did I truly understand why a trustworthy microgrid controller is almost always built by a specialized multilayer board shop.
It is not about finding just any multilayer PCB manufacturer capable of prototyping. Four layers as a starting point, six as the norm — the key is layering power ground and signal ground separately, especially for the storage side’s BMS communication, where inadequate isolation can drive the whole system into false-alarm madness. I switched through several multilayer PCB suppliers — some shops overstated their process capability, with insufficient inner-layer copper thickness, causing sampling deviation of over ten percent the moment high current flowed. I eventually settled on a shop specializing in industrial control boards, whose lamination structure builds transient suppression for the diesel-generator startup relay path directly into the inner layer, eliminating a pile of external TVS diodes — far more worry-free than patching things up on the schematic yourself.
Coordination between storage-side scheduling and diesel-generator backup, in reality, requires most of the hard work to happen in the PCB’s timing design. Everyone talks about using an RTC and timers, but the key is those few seconds of black start — the controller has to power up the MCU purely from remaining storage voltage or battery, with no external supply at all, then sequentially close the contactor, wake the inverter, and send the diesel-generator start signal. Writing this power-up sequence purely in software is a recipe for disaster — if the code ever runs away, the diesel generator might start erroneously without grid-connection conditions met, directly shocking the busbar. On the boards I build now, I lock the first-stage startup logic directly into a hardware PLD on the PCB, with the non-volatile configuration register stored in an independent FRAM — software can only read it, never modify it — that is genuine fail-safe protection.
Communication redundancy is the same story — many people think paralleling two RS-485 lines counts as redundancy. In reality, suppressing circulating current between storage and diesel generation cannot rely on the upper-layer protocol alone — the underlying hardware must be able to actively cut the connection. We had a case during islanded testing: storage SOC dropped to 15% and triggered diesel-generator startup, but a CAN transceiver was half-broken, the command never went out, storage kept discharging, and the battery over-discharged directly. We later revised the PCB, fully isolating the power supply for the storage-side and diesel-generator-side CAN physical layers, with current limiting added at the transceiver front end — so even if a chip burns out, it cannot pull the entire bus down. These details need to be planned during multilayer-board layout — patching in jumper wires afterward is useless.
Looking back now, a Microgrid Controller PCB is really not something you just buy off a reference design and tweak. Storage, diesel generation, PV and load — the real-time decision-making across these four energy flows ultimately rests, physically, on the copper foil and vias on that board. Finding the right multilayer PCB manufacturer and thoroughly internalizing process constraints upfront is far more solid than piling on compensation algorithms afterward.
Thermal Cycling, Creepage Distance for 690V Systems and BGA Routing Density
Working in microgrids for these years, I increasingly believe the core of stable operation is not really how advanced the algorithm is — it is whether that unassuming Microgrid Controller PCB can actually hold up. Grid equipment is not like a phone that you just replace when it breaks — it has to run for ten years inside a substation or a distributed-energy station, with high temperature, dust and electromagnetic interference all taking turns hitting it. So the design and manufacturing level of a multilayer board directly decides the fate of the entire system.
I have seen too many design teams pour all their energy into communication protocols and grid-tied strategy, only to die on the PCB. Because a microgrid controller has to process large volumes of analog sampling and high-speed digital signals, while also driving IGBTs or relays — this is not something a standard double-sided board can handle. You must go multilayer, separating power layer, ground layer and signal layer, and interlayer dielectric thickness and copper-foil weight both need careful calculation. Some multilayer PCB manufacturers will turn around and use standard FR-4 with ordinary copper thickness — the moment high temperature bakes it, the laminate’s expansion coefficient mismatch cracks vias, and the entire board is scrapped. We got burned by this early on — the sample ran fine, but on site, once cabinet temperature spiked to seventy degrees in summer, communication started dropping packets and control output drifted — a long investigation eventually revealed an internal micro-short inside the PCB.
We later switched suppliers, only working with multilayer PCB suppliers who genuinely understand industrial environments. Not just checking quote and lead time — first checking whether they have built multilayer boards for power electronics or grid equipment. Grid equipment has a distinctive characteristic: extremely demanding requirements for creepage distance and insulation withstand voltage. For example, a 690V grid-tied system — if the strong/weak-electrical isolation on the PCB is inadequate, a single lightning surge can burn straight through the control core. A good multilayer board supplier will proactively suggest a slotted design in the high-voltage isolation region, and use thick copper foil for power routing to prevent localized overheating. These small details — a consumer-electronics contract manufacturer will never consider them on your behalf, because they simply lack that awareness.
Another point: the functions integrated onto a Microgrid Controller PCB keep growing — storage, encryption, wireless communication — and routing density is absurdly high. We had one controller, an 8-layer board, with five or six hundred traces running under a BGA-packaged processor — a single misaligned blind/buried via, or over-etching, and the entire board is scrapped. This level of precision is not something just any multilayer PCB manufacturer can achieve. When auditing a factory, we always check their drilling and plating lines, whether they have laser direct-imaging equipment, and whether impedance control can be held within ±5%. Only once these conditions are satisfied do I dare hand over the design files.
I believe there is a misconception in the industry: excessive pursuit of communication redundancy and network-security chips, while overlooking the most fundamental hardware reliability. In reality, the grid’s first demand is “never crash.” Even if all communication is lost, the local control loop still needs to run independently, maintaining voltage and frequency stability. This requires the PCB layout to physically tightly couple the analog sampling front end with the digital control core, minimizing trace inductance, while thoroughly isolating external communication interfaces with isolation transformers and optocouplers. All of this has to be decided at the layout stage — it cannot be solved afterward just by adding a firewall chip.
So if you ask me for advice now, I would not suggest researching which ring-network protocol is more reliable — I would urge you to spend time finding a trustworthy multilayer PCB supplier. They can review the drawing with you, tell you where the copper foil is too thin, where thermal dissipation is inadequate, where a mounting hole should be added to prevent the board from cracking during transport vibration. This experience is not written in any book — only someone who has genuinely built grid equipment knows it. Build the PCB solidly, and your microgrid controller can survive various harsh field conditions — far more substantial than any flashy feature.
Field Reliability: Eight-to-Ten-Layer Stack-Ups and Minimum Creepage Distance
The more I have worked with microgrid controllers over the past couple of years, the more I believe the real hardware bottleneck is not chip selection — it is that unassuming PCB. Many people think a controller just needs an ADI metering chip dropped on and a real-time OS running, and that is the end of it. In reality, I have seen too many field failures that, traced to their root, all came down to the board’s own physical characteristics.
The grid’s temperament is far more volatile than imagined. Especially in a microgrid, PV output can surge suddenly, load can change abruptly, and ground-potential fluctuation can spike to several dozen volts instantaneously. A standard four-layer board simply cannot withstand this kind of punishment — common-mode noise sneaks straight into the sampling loop through the ground layer. If you have a random multilayer PCB manufacturer build the board at that point, even with the identical schematic, the result is two entirely different grades. I got burned by this — a batch of boards used a PP sheet with uneven dielectric constant, and impedance across the entire frequency band drifted, causing protection logic to false-trigger constantly, forcing the entire batch to be scrapped. We later switched to a multilayer PCB supplier specializing in industrial power boards, requiring them to use high-Tg FR-4, strictly fixing the number of lamination cycles, and controlling interlayer registration precision within ±2mil — that finally settled the problem completely.
So now, whenever someone tells me “controller hardware has no real barrier to entry,” I just smile. Look at the microgrids genuinely running in the Gobi desert or on islands — the controller PCB is stacked to at least 8 layers, even 10 — not just because of routing density, but because you need complete reference planes to contain radiation. An independent ground layer, an independent power layer, with copper blocks even embedded in between for heat dissipation — because outdoor cabinets can hit seventy degrees in summer, and if heat from the FPGA and communication chips is not quickly spread out, bit-error rate rises, and the entire microgrid’s dispatch falls into chaos.
Another commonly overlooked point is creepage distance during layout. A microgrid controller’s sampling board connects directly to Hall sensors on the busbar, with extremely strict withstand-voltage design requirements. I saw a multilayer PCB manufacturer who, to save cost, shrank the inner-layer power-split spacing to 0.4mm — withstand-voltage testing broke through directly. In a lab, that is just burning one board; in the field, that is the entire switchgear cabinet tripping — the loss is not a few thousand dollars, it is a power station shut down for a day, losing tens of thousands in generation revenue. So choosing a supplier is not about whether they can build multilayer boards — it is about whether they have built boards for grid equipment before, and whether they understand what “minimum creepage distance” and “pollution degree 2” actually mean.
At the end of the day, a good Microgrid Controller PCB is not drawn by a designer — it is built up through process by a trustworthy multilayer PCB supplier. Every layer of copper foil, every pass of solder mask on the board, is bearing the grid’s impact on your behalf. Treat this as a generic industrial control board when procuring it, and the subsequent troubleshooting will keep you busy for a long time.
Local Autonomy in FPGA and Black-Start State Retention via FRAM
Not long ago, on a project, the grid side suddenly lost power during on-site debugging, and the storage system simply failed to respond in time, causing a downstream device to restart outright. After a full investigation, the problem was in the grid-tied/islanded switching logic of that Microgrid Controller PCB — not that the principle was wrong, but that the signal routing took too many detours, and the accumulated delay exceeded the tolerance threshold. After that incident, my attitude toward multilayer board interlayer stack-up structure changed — I used to think a four-layer board was always enough; now I would rather spend extra effort on stack-up design to compress critical control loops onto the shortest possible path.
Many people, discussing microgrid dispatch, like to pile compute power onto the cloud or an upper-level industrial PC, as if the local controller is just a dumb node executing commands. I actually think that is not how it works. Grid fluctuations often occur at the millisecond level, and what genuinely withstands the shock is the local autonomous control loop on the board. I ran an experiment on a six-layer board once, writing grid-tied synchronization detection, islanding determination and storage charge/discharge logic entirely into the FPGA, with external communication used only for status reporting — in actual operation, even if upper-level dispatch went down, the local system could still hold frequency and voltage steady. This kind of security cannot be provided remotely at all.
On the topic of multilayer boards, finding the right multilayer PCB supplier matters more than anything else. I have fallen into traps — some shops’ interlayer withstand-voltage and thermal-stress testing were extremely perfunctory, and boards delaminated outright during high-temperature aging — no matter how beautifully the energy-scheduling algorithm was written on those boards, it was all wasted. We later switched to a multilayer PCB manufacturer specializing in industrial control and power electronics, whose lamination process and copper-thickness options were far more trustworthy — especially inner-layer copper thickness reaching above 3oz, which is critical for high-current loops. The current surge at the storage interface and diesel-generator interface is not something a generic consumer-grade PCB can withstand.
On energy dispatch, I believe the most commonly overlooked aspect is timing coordination. For example, a diesel generator has a warm-up window of a dozen-plus seconds from startup to stable output — how the storage system covers that period cannot rely purely on a simple voltage-threshold trigger; it needs to be dynamically adjusted based on battery SOC, current load characteristics and the diesel generator’s historical startup curve. On this board, I added a small real-time dispatch core specifically to handle this transient process — the result was much better than traditional PI control. Of course, this requires the PCB layout to cleanly separate analog sampling from digital control, or noise sneaking in from analog ground will keep you busy tuning for a long time.
Implementing black-start functionality is far more than simply adding a backup battery. Sequential startup control has to be designed together with the entire system’s topology — first powering the control loop, then gradually restoring communication and the power stage. When designing the Microgrid Controller PCB, I specifically reserved an independently powered RTC and FRAM — at the instant of power loss, critical state gets written into it, and upon power restoration, the system can directly resume the pre-outage dispatch state, rather than going through initialization from scratch. This kind of detail, if the multilayer board shop does not understand impedance and interlayer coupling well enough, can easily cause problems in power-layer splitting, leading to startup-sequence chaos.
Many projects now discuss IEEE 1547 and IEC 62898 compliance — the standard text itself is static, but the genuinely difficult part is quantifying these requirements into testable metrics on the PCB.
