Video Intercom PCB Engineering: Connector Layout, HDI Stack-Up, and the Real Reasons Door Stations Fail in the Field
- sprintpcbgroup
WHY THE REAL DIFFICULTY IS NEVER THE FUNCTIONALITY
In video intercom work today, most people pour their effort into software and algorithms, but the real hard problem lies in the circuit board itself. I’ve seen plenty of projects fall apart on exactly that small Video Intercom PCB. It looks like just a multimedia board — camera, screen, speaker, network port, all soldered on and done — but in practice, interfaces and stack-up alone can drive you to the edge of sanity.
Last year, a project called for an ultra-thin door station that still had to fit a 1080p camera module and a 7-inch screen, with total thickness capped under 20mm. At that footprint, an ordinary through-hole board is off the table — it has to be HDI. We initially worked with a so-called HDI PCB supplier — we sent over the drawings, and they couldn’t even properly sort out the stack-up design; laser blind-via placement conflicted with the power layer. When the prototype came back, the camera’s MIPI differential-pair impedance was all over the place, and the image was solid static. We eventually switched to a genuinely experienced HDI PCB manufacturer, and their engineers told us directly that the structural stack-up needed to change — the FPC connector couldn’t sit where we’d placed it, or the signal return path would be cut apart by structural components. That’s the gap real experience makes.
Interface standardization is a topic full of painful memories. Many engineers like copying the original reference design, but real-world conditions expose the flaws immediately. Take the mic circuit — you can trace a differential pair straight from the datasheet, and still end up with an audible hum, because the coupling between the enclosure seal and the PCB was never addressed — the board flexes slightly and the ground loop shifts. Then there’s the touchscreen’s FPC — running LVDS, but without equal-length routing, the long line drive causes clock jitter and screen flicker. These details might look like “just an interface” on the circuit board, but get it wrong and the whole device experience collapses.
My current habit is: the moment a board hits four layers, has a BGA, and involves high-speed signals, I go straight to HDI process, bringing in a reliable HDI PCB manufacturer from the engineering phase to help review stack-up and impedance. The interface layout on the board always gets argued out with the structural engineer first — camera, screen, speaker, antenna, card-reader coil positions all get locked down before I dare start routing. Plenty of people think the circuit board is just about matching the schematic — draw it and you’re done — but for a video intercom product, the PCB is the physical skeleton of the whole system. If the skeleton is crooked, no amount of clever algorithm can hold it up.
WHY YOU LOCK DOWN THE PCB OUTLINE BEFORE DRAWING A SINGLE TRACE
Anyone in video intercom work knows the real headache is never whether a function runs — it’s the mess of problems that surface once the board gets crammed into an enclosure. I’ve handled several projects where everything looked fine at the schematic stage, only for structural interference, cable conflicts, and antenna signal blocked by the metal frame to surface one after another once we got to full assembly. So now my habit is: before drawing the first trace, I lock down the PCB outline and height-restricted zones together with the structural engineer — especially for ultra-thin indoor units, where every fraction of a millimeter of space matters.
A Video Intercom PCB is never an ordinary circuit board — it’s packed with a camera MIPI interface, the display’s FPC, mic and speaker pads for audio, and a Wi-Fi/BT antenna matching network — nudge any of these hardware placements even slightly and the acoustic cavity or seal ring won’t compress properly anymore. I had a door station project where we underestimated the ingress protection rating and used an ordinary board-to-board connector — the prototype failed water-spray testing immediately. That’s when I learned that in an outdoor scenario, connector waterproofing matters even more than the board itself. On whether to go HDI, it really depends on your main controller’s package and routing density. With a recent Rockchip platform, DDR routing was so dense that a conventional through-hole board couldn’t fan it out at all — we had no choice but to find a dedicated HDI PCB manufacturer for prototyping. The first shop we worked with had never done that kind of second-order stacked-via process, and yield was alarmingly low. We switched to an HDI PCB supplier with mobile-phone-board experience, and using the identical stack-up, signal integrity came out significantly better. So my view is: if structural constraints and hardware interface definitions aren’t discussed together from the very start, you’re just digging your own hole once volume production begins.
WHY THE PCB IS THE REAL CHOKE POINT, NOT THE SOFTWARE
Working on video intercom products over the years, I’ve gradually come to realize that the actual choke point of the whole-unit design is almost never software — it’s the physical form of that Video Intercom PCB. When the industrial-design team hands over a concept drawing, the space left for the board is often only fingernail-thin, and they still expect you to cram in processing power, networking, and audio/video encoding all at once. Traditional multilayer boards simply can’t handle that — you need an HDI PCB manufacturer to step in, using laser buried and blind vias to raise trace density, or you can’t even route the watchdog circuit.
Many people assume connector layout is purely a layout engineer’s job — actually it’s the first checkpoint determining the whole unit’s reliability. I got burned on a door station project: the power terminal and alarm I/O terminal were placed at opposite ends of the board, and after installation, the cable was pulled crosswise during wiring — before long, the terminal pads cracked. I learned my lesson: no matter how the structure changes, every external connector now has to be concentrated on one side, arranged in an order matching actual wiring habits — network port, then RS-485 beneath it, then power below that — so the wiring direction stays consistent, assembly is easier, and failure rate drops significantly. None of this is obvious until you’ve spent real time on the production floor.
Thermal management is never optional on a Video Intercom PCB. An indoor unit mounted on a wall has limited space for a thermal pad on the back, so the processor and power module have to sit near the board edge, letting heat conduct directly to the metal backplate. Door stations are even trickier — after summer sun, the enclosure gets too hot to touch, air inside barely circulates, and the PCB copper essentially acts as the heatsink. My habit is to have the HDI PCB supplier thicken the inner-layer copper to 2 oz, then fill the area under hot chips densely with thermal vias, guiding heat to the entire board’s ground layer. It adds a bit to fabrication cost, but that’s nothing compared to warranty repair costs.
Nowadays, when people select a supplier, the first question is always price — process stability of the HDI PCB manufacturer gets far less attention. I’ve seen cheap samples with laser-hole inner walls rough enough to be alarming — one thermal-shock cycle test and the hole walls cracked outright. Video intercom products are expected to last seven to eight years, exposed to wind and rain outdoors — a board like that simply can’t hold up. So I eventually settled on a fixed HDI PCB supplier — their quote runs a bit higher every time, but their blind-via copper-fill process is genuinely solid, and cross-section analysis has never come back with a problem. That reliability gap becomes more obvious the larger the production volume gets.
THE CONNECTOR THAT DERAILED AN ENTIRE LAYOUT
A few years ago, I took on a revision project for a building intercom brand’s door station board — that’s when I first realized how much a connector alone can wreck your entire layout. The original board kept reporting audio noise, and the camera image occasionally stuttered. It took half a month of investigation before we found that the audio input line ran directly beneath the power terminal pad — essentially routing an antenna right next to its own interference source. After that, I told the hardware lead: for a board like this, you shouldn’t start routing at all until you’ve locked down the connector pin positions and every keep-out zone. The door station’s sealing groove dimension is fixed — connectors must sit within 1.5mm of the board edge, or the O-ring won’t compress properly and waterproofing fails outright. So on every board layout since, I place RJ45 and Phoenix terminals first, lock their positions, and only then fill in the rest of the circuit. Sounds simple, but in practice, swap even one connector model and the height clearance, tail-plug direction, and solder-surface flatness all need re-evaluating. Some vendors’ materials warp slightly after high-temperature reflow — tighten the panel down and the seal compresses unevenly, and our QA team failed rain testing immediately.
Memory is another area where people often assume you just follow the chip vendor’s reference design. But in a door station’s tight volume, thermal management and routing are natural enemies. I handled a case using an RK3566 paired with 2GB LPDDR4, where the solution provider initially suggested a POP package to save space — but the back of that board sat against an aluminum enclosure, meaning the SoC was sandwiched between the memory and a thermal pad, trapping all the heat inside. At a 60°C ambient summer temperature, once image processing kicked in, chip surface temperature shot past 95°C, the core throttled, and face recognition slowed to a crawl. We eventually moved the memory chip to the side, laid it out tightly, and used thermal gel to conduct heat directly to the aluminum enclosure — SoC junction temperature dropped back to just over 80°C. The trade-off: layer count went from 4 to 6, and the memory traces needed serpentine length matching as intricate as a snake pattern, then repeated impedance tuning, or it would error out running at 1866Mbps. That’s when you realize the real difficulty of a Video Intercom PCB isn’t functional implementation at all — it’s the three-way tug-of-war between mechanical structure, thermal management, and signal integrity.
Once you’ve built a board like this, you stop trusting the capability of ordinary PCB shops. Laser blind-via alignment accuracy and via-fill dimple rate, even slightly off, will wreck the entire memory differential-pair set. I eventually settled on an HDI PCB manufacturer specializing in three-order blind/buried vias, with excellent via-fill copper uniformity control — I check their cross-section report every single time. Choosing an HDI PCB supplier, the biggest fear is one that quotes low but only claims engineering capability verbally. On one trial batch, the factory used outdated laser parameters, leaving resin residue at the bottom of blind vias — with a 0.3mm-pitch BGA, over a dozen memory data-line impedances measured above 60 ohms against a 40-ohm design target — nearly a 50% deviation — and the board simply wouldn’t boot. That kind of mistake wastes not just the board but an entire batch of materials and assembly labor, so I’d now rather pay a slightly higher unit price and choose a small-batch line with hot-oil testing and micro-section capability, even if lead time runs an extra week.
Many people think connector selection, memory placement, and PCB manufacturing are three separate matters, but in my view, on a product like a door station, they’re really one single issue. Choosing a connector effectively decides board thickness, surface copper thickness, and pad surface finish — we used to run OSP process, and the Phoenix terminal would oxidize black after just five insertion cycles; we later switched entirely to immersion gold plus local heavy gold plating, adding 15% to cost. Memory placement, in turn, determines whether you need HDI process at all — and once you’re on HDI, your supplier’s laser drilling capability directly determines whether the board even functions. So from the very start of a design, I pull out the HDI PCB supplier’s engineering spec sheet — minimum trace width/spacing, laser via diameter tolerance — and work backward from there to decide whether a more compact connector is feasible, and how aggressively the memory layout can be pushed. Cut a corner anywhere in this chain, and the prototype comes back with black screens, squealing, or overheating shutdowns — and fixing it after the fact doubles both timeline and cost.
WHY WE SWITCHED FROM DVP TO MIPI
While working on a video doorbell, I went through several revisions on the camera-to-mainboard connection. At one point, to save time, I used an ordinary board-to-board connector with a ribbon cable — the image kept flickering with horizontal streaks intermittently. After investigation, the MIPI differential pair hadn’t been length-matched, and impedance wasn’t controlled either. We eventually switched entirely to the camera module’s own FPC, running directly from the sensor into a narrow-pitch socket on the main board. I had the structural engineer simulate the FPC’s bend multiple times, because a door station’s front enclosure has very tight space — an insufficient bend radius, or friction against a reinforcement rib on the enclosure, and over time the signal becomes intermittent — an invisible fault that’s more troublesome than an outright failure.
When choosing a supplier for the Video Intercom PCB, I barely hesitated before committing to an HDI-capable shop. A door station’s mainboard is small but interface-dense — MIPI routing, power, and storage all crowd together, and an ordinary through-hole board simply can’t route it out, nor guarantee a clean return path when differential pairs cross layers. We switched to a dedicated HDI PCB manufacturer, running the MIPI signal directly between surface and inner layers through laser blind vias, and impedance continuity improved significantly. We’d tried several HDI PCB suppliers before — some quoted low but had dielectric-thickness tolerance drift badly during actual production, causing differential impedance deviation directly, resulting in image noise at temperature extremes. Later, when screening suppliers, I was willing to pay more, provided they’d supply impedance test coupons and batch reports.
On the camera side, I’ve essentially abandoned DVP entirely. DVP sensors are cheap, but with a dozen or more parallel data lines, length matching and crosstalk are simply too hard to control on a compact board, and it eats up too many I/O pins, forcing cutbacks elsewhere. MIPI needs just two differential pairs plus a clock — the freed-up pins all went to the fill light and its driver, and the overall board layout ended up much cleaner.
WHY MIPI AND LVDS SHOULDN’T SHARE A NEIGHBORHOOD
The thing to fear most when building a Video Intercom PCB is mixing high-speed routing and analog audio circuitry together. When I first started laying out this kind of board, I assumed wrapping the MIPI differential pairs and length-matching them was all it took — then the prototype came back, and the microphone hummed the moment power came on, no matter what I adjusted, until I finally found the culprit: a few groups of LVDS lines nearby. MIPI and LVDS are practically standard interfaces on a Video Intercom PCB now — one drives the screen, the other likely handles the camera module — both running fairly high data rates, but with completely different noise sensitivity, and the mic circuit is forced to squeeze right at the board edge, leaving almost no layout room to work with.
I later switched to a different HDI PCB manufacturer, and once laser-drilling precision improved, routing density freed up enough margin that we could finally fully split the mic’s analog ground from digital ground. How do I pick an HDI PCB supplier? I don’t look at how many years of experience their website claims — I ask directly whether the factory can provide actual impedance test reports for buried and blind vias in the stack-up structure, because on plenty of Video Intercom PCBs, if the MIPI clock line’s impedance is off by even three to five ohms, the image gets intermittent horizontal streaks, and it’s simply not production-viable. I’ve tried several HDI PCB suppliers who claim they can do it but can’t produce actual measured data — yield was low enough to be maddening.
One more detail: for the mic bias supply, I stopped using an LDO entirely — instead I built a simple RC filter plus a transistor-based active filter, pushing noise ripple down to a few millivolts, which turned out more reliable than relying on the HDI PCB manufacturer’s process alone to shield it. At the end of the day, with a Video Intercom PCB, you have to think about audio, optical, and electrical paths separately while sharing the same board — finding an HDI PCB supplier capable of fine vias and fine-line routing does more for you than months of self-taught layout rules.
WHEN A 0.2MM MISALIGNMENT RUINED A SEAL
Over the years in hardware, I’ve hit plenty of pitfalls in video intercom work, especially once board density climbs — that’s when you realize just how critical it is to choose a reliable HDI PCB manufacturer. Many people think it’s just drawing a board — drop the mic and amplifier on, connect them, done. Not even close. On one door station project I handled, we switched to a small HDI PCB supplier to save cost, and interlayer alignment accuracy fell short — the mic pad position shifted by 0.2mm, and once assembled, the sealing silicone gasket couldn’t compress properly, and the whole unit sounded like an echo chamber, like talking in a cave.
We eventually moved the board to a shop specializing in advanced HDI, strictly requiring laser-drilling precision, and insisted they pull the differential pairs on the mic routing separately and provide us their impedance test report. Here’s the thing most people don’t realize — a mic circuit isn’t just a differential pair plus a common-mode choke and done. In the tight space of a Video Intercom PCB, the Wi-Fi module’s antenna feed point is very likely right next to the mic — once crosstalk climbs, all kinds of TDMA noise creep in. My habit now is to separate the mic loop’s ground from the amplifier’s ground at the layout stage, merging them at a single point at the battery holder or power entry — far more effective than relying purely on filter components.
Amplifier design is where I hit a different kind of pitfall. I used to be convinced that Class-D amplifiers, given their higher efficiency, could safely be pushed to 3W output for a louder result — but once crammed into a door station’s small cavity, with insufficient thermal copper width, a peak current surge would spike local temperature rise dramatically, and the amp chip would keep triggering thermal protection, volume fluctuating unpredictably. I eventually started treating the amplifier’s power-supply copper as a power trace during layout, sizing width based on a 2A peak current, and specifically opening a window on the bottom side with added solder for heat dissipation. Interestingly, once I switched to an HDI PCB manufacturer with better thermal understanding, they suggested connecting all the inner-layer copper beneath the amplifier into one solid heat-spreading block — the effect was immediate.
Another commonly overlooked detail is the waterproof-breathable membrane covering the mic and speaker. Structural teammates always assume that’s their job, and electronics just needs to solder the components on. But on a Video Intercom PCB, if the mic is a surface-mount silicon type, its pickup hole faces directly toward the waterproof membrane, which is bonded to the enclosure with a seal gasket in between. Even a 0.3mm misalignment on the PCB creates a small air cavity between the membrane and the mic hole, completely changing the acoustic response — no amount of echo-cancellation algorithm tuning can fix that afterward. Now I always scrutinize the seal gasket’s compression ratio and assembly tolerance during structural review, and design two locating holes on the electronics side specifically for the mic pad, forcing the structural component and the board into strict alignment, leaving zero margin for error.
Speaking of this, you might ask about PoE power supply. On a Video Intercom PCB running PoE, what concerns me most is transformer isolation. I used to just copy the reference design — slot between primary and secondary, leave a 6mm creepage margin, and call it done. Then one time, a finished board revealed a burr on the copper beneath the transformer that nearly shorted the isolation barrier. Since then, I require the HDI PCB supplier to add keep-out copper beneath the transformer isolation zone as well, and require an extra high-voltage flying-probe test. At the end of the day, a board house’s technical capability and communication thoroughness matter more than the chip model itself. Choose an HDI PCB manufacturer who genuinely understands these concerns, and plenty of problems get caught during the engineering inquiry stage — saving you far more trouble than you’d think.
WHEN AN ANTENNA’S RESIDUAL STUB CUT WI-FI THROUGHPUT IN HALF
Working in hardware for a long time, I’ve touched a lot of different product categories, but the video intercom board is genuinely a different world from ordinary consumer electronics. When I first started, I approached it with conventional PCB thinking, and quickly found that didn’t work at all. On one project, the dimensions were locked extremely tight, and we still had to cram in Wi-Fi, Bluetooth, plus 1080p camera processing — an ordinary through-hole board couldn’t route it, which is what forced me to find a genuine HDI PCB supplier.
Many people assume HDI just means laser drilling, and any shop can do it the same way. In reality, the moment a board goes into video intercom — especially one with a PTZ or IR fill light — power supply and signal integrity will expose flaws in your design immediately. The one I remember most vividly was a Video Intercom PCB — four layers, first-order HDI, board thickness pushed down to 1.0mm, with a ceramic antenna and a DSP chip mounted on it. That HDI PCB manufacturer really let us down — they claimed 50-ohm impedance control, but the residual stub on the antenna feedline wasn’t handled properly, and overall Wi-Fi throughput dropped by almost half. We eventually switched to an RF-specialized HDI shop — one glance at the Gerber file and they immediately pointed out our antenna matching network was positioned too close to the edge, ground vias weren’t properly enclosed, and suggested moving it to a position slightly left of board center, with keep-out clearance expanded another 1.5mm.
So antenna placement, on a Video PCB, is never just drawing a random serpentine trace and calling it done. My habit now is: whenever a board has wireless functionality, no matter how tight the space, always leave adequate keep-out clearance on three sides of the antenna area, and absolutely no copper pour on the back — even on a multilayer board, the inner layers get hollowed out too. A vendor’s reference design is only a starting point — you also have to account for the enclosure. For a metal-enclosure door station, if you don’t route the antenna out or open a window for it, the signal simply can’t escape. I saw one fairly expensive solution that used an IPEX connector with an external FPC antenna, then switched to a cheaper coaxial cable to save cost — VSWR jumped above 3, and the image became unwatchable.
Speaking of HDI, many Video Intercom PCBs are now moving to second-order or even any-layer interconnect, because main-controller BGA pitch keeps shrinking, with 0.4mm pitch becoming increasingly common. Without a reliable HDI PCB manufacturer, you’ll find huge gaps between vendors in laser-drilling alignment precision and via-fill plating. One partner I’ve worked with provides cross-section reports where the blind-via bottom connects solidly to the inner-layer copper, with no cracks visible — that kind of board survives thermal shock testing. Some shops rush the process without properly tuning parameters, leaving rough hole walls that can develop an open circuit months later — a hidden failure that’s essentially a disaster on a door station, since the labor cost of a single teardown can exceed the cost of the board itself.
On power supply, many people only care whether there’s enough current, but on a Video Intercom PCB, power noise control directly affects image quality. I saw one board where a DC-DC converter sat right next to the camera module without shielding, and the image showed horizontal noise bands. Moving the power section to the opposite end of the board, wrapping it in copper shielding, and adding an LDO near the camera solved the problem entirely. And if the door station runs on PoE, the wide-voltage design after the 48V input comes in absolutely must consider load-dump protection — TVS diodes and varistors need to sit as close to the input port as possible, with the shortest possible ground return path, or a surge event won’t burn the power chip — it’ll burn the sensor downstream instead.
Structural coordination with the PCB is also severely underrated in video intercom design. Take door station sealing, for example — relying purely on the enclosure’s gasket isn’t enough. Openings on the PCB for the mic and speaker, if not fitted with waterproof acoustic membranes, or if the board edges lack rounded treatment, become water-entry points. I later worked on an IP65 project requiring full watertight integrity — the PCB edges all used half-plated immersion gold, matched with the enclosure’s groove design, and once the seal gasket was installed, even a seam facing upward passed rain testing. None of these details get handled by a supplier on their own — you have to work through it round after round with the structural engineer and the HDI PCB supplier together.
Overall, building video intercom equipment, PCB design and manufacturing is a systems-engineering problem — from antenna to power, from HDI process to structural waterproofing, every link is interlocked.
WHY A $2 CONNECTOR FIX ELIMINATED FIELD RETURNS
Over the past two years, I’ve worked on seven or eight building-intercom projects, going from initial enthusiasm to eventually losing sleep over detail after detail. My deepest takeaway is that a Video Intercom PCB looks simple, but every single layer tests your design’s limits. Many people assume that once you’ve stacked the camera, screen, and network module and it powers on, you’re done — but the real failures almost never come from functionality. They come from those small physical “surprises.”
Last year, a project used a four-layer board, and to save cost, we chose an FPC connector without a locking latch. Within six months of field deployment, over a dozen units started showing flickering or completely black screens. When we opened them up, the camera FPC had literally popped out of its socket — daily door-slam vibration, combined with that spot being right at the enclosure’s reinforcement-rib stress point, caused gradual displacement, and the ribbon cable eventually worked its way loose. We switched every FPC connector to a latching version, and required the HDI PCB supplier to leave an independent reinforcement zone for the FPC during panelization — not simply applying a layer of PI film, but locally thickening it with a calculated stainless steel backing plate based on the actual bend radius. That change added less than two yuan to the per-board cost, but return rate dropped to zero.
This experience made me rethink our approach to HDI boards entirely. We used to assume that a first-order HDI was sufficient for an indoor unit — thinner always seemed classier. But the problem is that an ultra-thin indoor unit forces dust protection and heat dissipation to compete against each other, and it’s genuinely hard to have both. Take the sound-outlet hole, for example — for dust protection you need fine mesh, but that increases audio attenuation; for heat dissipation, you press the metal shielding can tight against the main chip, but the area around the can then accumulates dust more easily — even at an IP5X rating, dust still gets in, and over time, fine dust builds up around the mic and speaker holes and degrades audio quality. One HDI PCB manufacturer eventually suggested building a stepped recess directly into the PCB, recessing the mic and speaker, and replacing the traditional dust screen with a waterproof-breathable membrane, routing airflow away from the hot zone — achieving dust protection without sacrificing much acoustic performance. But this process demands a lot from the board house’s capability — many small shops simply can’t do it, so we ended up going with that same advanced-HDI supplier, at the cost of higher communication overhead, but the results were genuinely good.
So now, when I pick a PCB shop, I don’t just look at how small a hole they can drill — I care much more about whether they can support structural simulation work. Take a door station’s enclosure seal groove, for example — if you design it without accounting for the actual connector height tolerance on the PCB, you might calculate a 25% compression ratio on paper while actual production, due to board thickness deviation, only achieves 15% locally — and heavy rain will leak straight through. A good HDI PCB manufacturer controls board thickness tolerance within ±0.05mm and provides a plating thickness report, letting the structural engineer precisely calculate the seal gasket’s interference amount. Many people assume a PCB shop only handles the circuit — that’s not true; on dust and water protection, they can be a genuine asset.
At the end of the day, a Video Intercom PCB’s design is only foundational at the level of circuit performance — what actually separates the good from the mediocre is understanding of mechanical stress, environmental protection, and supply-chain coordination. A board goes through countless compromises from drawing to mass production, but some things genuinely can’t be compromised — FPC reliability, PCB dimensional precision, and dust-protection structure chief among them. Every one of these lessons is worth the cost of a returned unit.
WHY A FEW MICRONS OF DIELECTRIC THICKNESS RUINED AN ENTIRE BATCH
I’ve handled several outdoor Video Intercom PCB projects, and every time we switch HDI PCB supplier, it feels like peeling off a layer of skin. The drawing never changed, but a new board would power up and produce intermittent video corruption. After tracing it back repeatedly, we found the impedance simply wasn’t under control. It took a while to understand that many HDI PCB manufacturers’ stack-up reports are only a reference — once you get to actual lamination, a difference of just a few microns in dielectric thickness can throw characteristic impedance way off target. Hardware is most vulnerable to exactly this kind of invisible deviation.
Cheap connectors are another major trap. Plenty of people assume that once the enclosure hits IP65, everything’s covered — but moisture doesn’t respect your designed sealing ring. It creeps in through the microscopic gap between a connector’s metal pins and plastic housing, eventually corroding the internal PCB traces beyond recognition. If your chosen connector has plating too thin, or impure pin material, contact resistance shifts after a handful of insertion cycles, camera power supply becomes unstable, and the image starts breaking up into streaks. At that point, no matter how good your image processor is, it’s useless.

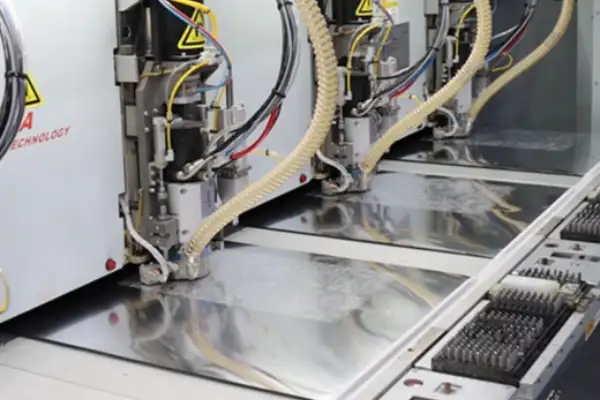

So now, when I judge whether a board is well-built, I never look at the main controller’s benchmark score first — I look at the board house’s command over blind and buried vias, and whether the connector selection has enough margin. Put simply, you can’t choose an HDI PCB supplier purely by comparing prices online — you have to visit the production line and see how they handle post-laser-drilling hole-wall cleaning. These details, above everything else, are what actually determine whether a Video Intercom PCB can survive three years of sun and rain outdoors without a single failure.
