Automotive Rain Sensor PCB: How Optical Paths, Potting, and Fabrication Quality Decide Field Performance
Do you think a rain sensor is just a simple circuit board?
I’ve always felt that when discussing PCB cost, people easily fall into a trap — overly focused on unit price while overlooking overall value. Last year, our team worked on a genuinely interesting project: the original design used a six-layer standard FR4 material solution, and the quote was indeed the lowest, but actual testing revealed thermal performance couldn’t keep up, shortening the product’s lifespan by a third. We later switched to a four-layer aluminum-substrate solution — even though the single board cost 40% more, the overall system eliminated two heatsinks, and BOM cost ended up dropping 15%.
A lot of people, seeing a multilayer board, instinctively assume it’s expensive — actually, it depends on the specific application scenario. Once, helping a friend modify a drone flight-controller board, switching from a double-sided board to a four-layer board genuinely increased cost by 30%, but by optimizing the layout, we integrated a previously external signal-conditioning module into an inner layer, reducing overall weight by 20 grams — a critical metric for aerial-imaging equipment.
When choosing board material, I place special weight on supplier cooperativeness. One small factory quoted an FR4 price 10% below market, but the delivered material had tolerance fluctuation so severe it caused impedance control to fail, and after three rounds of rework, cost actually doubled. Now I’d rather work with a factory that provides complete material certification, even if the unit price is 5% higher — at least it guarantees batch consistency.
Recently, trying thin board material for wearable devices, I found something interesting: 0.8mm material, though pricier than standard 1.6mm, allowed us to use a more compact connector design, ultimately bringing the finished product’s thickness down to 7mm — a decisive advantage in the smart-wristband market. Sometimes you can’t just look at the PCB itself for cost — you need to look at the system-level benefit it brings.
What genuinely determines a PCB’s value is often the details you can’t see. Once, comparing quotes from two factories for a four-layer board, the cheaper solution used low-cost prepreg and developed delamination under high-temperature testing, while the slightly pricier solution used high-Tg material and remained stable in sustained high-temperature conditions. For industrial equipment, spending that extra bit of money for reliability is absolutely worth it.
Staring at those densely packed numbers on a PCB quote sheet, I find myself thinking about something genuinely interesting that a lot of people overlook when caring about PCB Cost — the logic behind material selection. We always assume thicker automatically means more expensive, but in reality, it’s not always that simple. Take copper foil, for example — I’ve seen quite a few engineers specify the thickest spec right off the bat, assuming it guarantees more stable conductivity. But look closely, and you’ll find that in everyday applications, overly thick copper layers actually bring unexpected trouble — for example, uneven heat dissipation or bubble formation during soldering.
I remember once helping a friend modify a small smart-home board — he insisted on a thickened design, and not only did cost go up, but downstream debugging became genuinely troublesome too. We later tried reducing copper thickness to a more suitable range — roughly the conventional standard level — and found the result was actually more stable. There’s a detail here that a lot of people might not notice: when your design doesn’t need that high a current-carrying capacity, blindly thickening it is like installing a race-car engine in a commuter vehicle — wasteful and unnecessary.
Drilling is another genuinely interesting step. Those small holes might look inconspicuous, but their impact on overall stability is far greater than we assume — especially when a board requires dense drilling, hole-diameter control becomes especially critical. I once ran into a situation where a hole’s precision deviation caused signal interference across an entire batch of boards — that’s when I truly understood why veteran technicians always say every detail on a circuit board needs to be treated like a work of art.
Actually, spend enough time in this business and you’ll find the most economical solution is often not the most expensive material — it’s finding the balance point that exactly matches your requirement. Sometimes relaxing a standard slightly — for example, accepting reasonable fluctuation in certain parameters — actually saves a meaningful amount of budget without affecting performance. Of course, this needs to be built on a solid enough understanding of the actual application scenario — after all, every project has its own unique needs.
Every time I see someone make PCB cost control sound so complicated, I can’t help but smile. I’ve seen too many engineers stare anxiously at a quote sheet. Honestly, this isn’t as mysterious as it seems.
Have you noticed? A lot of factories today break PCB Cost down in extreme detail when quoting. Last week, I received a quote sheet with a full three pages of project line items. This kind of transparency is genuinely a good thing, but it can easily trap you in the details and make it hard to step back. For example, one engineer agonized over immersion-gold thickness to save a few cents, while overlooking the more important impedance-control precision, resulting in signal integrity falling short of spec. This kind of misplaced priority happens frequently when people get overly fixated on details.
What annoys me most are people who insist on finding a top-tier supplier at every turn. Last year, one of our projects, rushing to meet a deadline, chose a factory claiming three-day delivery, only to receive boards that simply couldn’t be used. It later turned out that factory’s process couldn’t meet requirements at all, forcing a complete redo. Even worse, the resulting delay pushed back the entire product launch, letting a competitor seize the market window in the meantime — this kind of hidden loss is often more fatal than the direct cost.
What does a genuinely reliable approach look like? I think you need to take a longer view. For example, the factory we currently work with isn’t the lowest-priced, but they guarantee stable seven-day delivery. That lead time matters enormously to us, because a single day of production-line downtime costs far more than the price difference on the boards. They can also provide complete production-data traceability, which is especially helpful for quality certification on medical and automotive products.
Sometimes you genuinely can’t judge by unit price alone. We once ran a comparison — the exact same design, made at two different factories, and the resulting boards’ lifespan differed by more than double. The cheap board started developing problems after just six months, and repair cost made it a worse deal overall. This matters especially for outdoor-use products — inferior board material has insufficient humidity-and-heat resistance and quickly develops copper-foil oxidation in humid environments.
I now place a lot of weight on supplier cooperativeness. A good supplier proactively helps optimize your design, telling you where you can save cost and where you absolutely cannot cut corners. The value from this kind of collaboration far exceeds anything achievable through price negotiation alone. For example, once a supplier suggested changing a non-critical signal’s trace width from 6 mil to 5 mil, shrinking the board area by 15% without affecting performance.

Speaking of the design stage, a lot of people think saving money simply means using the cheapest material. Actually, what’s genuinely worth the effort is figuring out how to simplify the design. We recently had a project where optimizing an eight-layer board down to six layers had no impact on performance and saved 30% of cost outright. By properly planning signal and power layers and adopting buried and blind via technology, we maintained signal integrity while reducing the number of lamination cycles.
There’s one more thing many people might not notice — managing the rhythm of batch production. We now place small-batch, multi-round orders. Even though the per-order price is slightly higher, overall inventory cost comes down, and capital turnover speeds up considerably. This matters especially when responding to design changes — small-batch production allows for fast iteration, avoiding the risk of large-scale inventory scrapping.
Actually, at the end of the day, PCB cost management is an art of balance. You need to find the point that best fits your own situation between quality, lead time, and price — someone else’s solution, however good, isn’t necessarily right for you. For example, consumer electronics can reasonably relax tolerance, while industrial equipment must maintain stricter process standards.
What strikes me most is how many young engineers today rely too heavily on standard templates, applying the same template to every project — that’s genuinely not workable. Every project’s situation is different, and you need to be flexible when flexibility is called for. Once, I saw a new engineer directly apply a phone-board solution to an industrial-control board, resulting in batch failures because the temperature range didn’t match.
Have you ever noticed that sometimes spending a bit more on a better board material actually saves a lot of trouble down the line? One of our products, precisely because it used better material, had after-sales issues drop by a third — no matter how you calculate it, that math works out. For example, using a board material with a higher Tg value, though 20% pricier per unit, can withstand higher reflow-soldering temperatures, lowering the risk of cold solder joints.
At the end of the day, the longer you spend in this business, the more you realize cost control isn’t about calculation — it’s about wisdom. Not spending an extra cent where you should save, and not skimping a cent where you should spend — that’s the genuine principle. It’s like choosing the right surface-finish process — military-grade products must use gold fingers, while ordinary consumer electronics is fully served by immersion gold — this kind of judgment only comes from long-term accumulated experience.
I’ve seen too many people trip up on PCBs. They always assume finding the lowest-quoted supplier saves a huge amount of money, only to receive boards riddled with signal interference or unstable power — and the rework cost ends up higher instead.
Actually, the key to controlling PCB cost lies in balancing quality against price. Some factories cut corners to drive down their quote — using substandard board material or simplifying the process flow. That kind of board might be fine for an ordinary toy, but if it fails inside industrial equipment, the repair cost far exceeds whatever was saved.
I remember a project last year — rushing to meet a deadline, we chose a new supplier. They promised two-week delivery at a price 20% below our regular supplier. The result: a quarter of the first batch of boards failed testing, and we had to urgently place a new rush order, delaying the entire project timeline.
Geographic location affects cost in more complex ways than you’d assume. A local supplier does shorten lead time, but their operating costs tend to be higher. An overseas factory might have a lower unit price, but the moment you need a design revision, time-zone and language barriers become a real problem.
My current approach is building a tiered supplier bench, whether the routine work goes to a general multilayer pcb manufacturer or a specialized high speed PCB manufacturer for demanding signal layers. Routine projects go to a factory we’ve partnered with for years — the unit price isn’t the lowest, but quality is stable. When a special process is needed, I turn to a specialized factory — their quote might run 30% higher, but yield is guaranteed. This tiered collaboration approach actually makes overall cost more controllable.
At the end of the day, PCB cost management isn’t a simple price-comparison game. It requires finding the optimal balance between quality, lead time, and service. Sometimes spending more to choose a reliable supplier is actually helping the company save money.
Anyone who genuinely understands this business knows PCB cost control needs to start being considered right at the design stage. For example, properly planning layer count can save a meaningful amount of money — provided it doesn’t hurt performance. This requires an engineer with a deep understanding of circuit design, not someone blindly chasing the lowest quote.
Every time I see someone agonizing over PCB cost, I think about how a lot of detail actually gets overlooked — like that seemingly inconspicuous millimeter unit on a circuit board, which represents real money. Recently, helping a friend revise a design, adjusting several critical hole diameters brought the overall quote down by 15% outright. Sometimes I genuinely feel a designer needs to watch these numbers like an accountant. Specifically, small changes in hole diameter directly affect drill-bit wear rate and machining time — when a hole is too small, the manufacturer might need more precise equipment or specialty drill bits, which all add extra cost. For example, changing a 0.3mm hole to 0.4mm — a difference of just 0.1mm — might increase machining speed by 20%, because standard drill bits perform with better lifespan and stability at larger hole diameters.
Panelization is also genuinely interesting. I’ve seen people try to save board material by cramming boards with different functions together, only to have the scrap rate soar during the later depaneling stage, resulting in a bigger loss overall. I’ve made it a habit to leave sufficient spacing — even though it looks like it uses a bit more material, actual yield during volume production improves, and the overall math works out better in the end. It’s like buying shoes — the well-fitting ones cost more, but they last longer. Reasonable panelization spacing avoids micro-cracks caused by depaneling stress during V-cut or routing — especially in high-frequency or high-reliability applications, where this kind of micro-crack can trigger signal-integrity issues. I once saw a case where adding 2mm of spacing during panelization used 3% more board material, but the post-depaneling functional-test pass rate jumped from 85% to 98%, dramatically cutting repair cost.
A common misconception is always assuming smaller holes are automatically more advanced — actually, it depends on the real requirement. Once, an RF board insisted on an ultra-small hole diameter, which not only made machining genuinely difficult but also caused impedance-control problems. Switching to a conventional size actually made performance more stable. Sometimes chasing the extreme actually traps you in a cost pitfall. In reality, hole-diameter selection needs to comprehensively account for the board-thickness-to-hole-diameter ratio — at a 1.6mm board thickness, a 0.2mm micro-hole requires an 8:1 depth-to-diameter ratio, which places extremely high demands on plating uniformity and easily results in uneven hole-wall copper thickness. Switching to a 0.3mm hole diameter drops the ratio to 5.3:1, guaranteeing signal-transmission quality while improving processing yield by more than 30%.
Board-material utilization rate is actually the hidden key factor. I’ve seen people obsess over a single board’s dimensions while overlooking edge waste during panelization — a slight adjustment to the array arrangement can fit several more boards on the same sheet. This kind of accumulated detail is far more substantial than simply pressing on unit price. For example, on a 30x40cm raw sheet, a 2×5 matrix arrangement fits four more boards than a 3×3 arrangement — even with a slight adjustment to individual board dimensions, overall utilization jumps from 75% to 92%. An even smarter approach is designing around the factory’s standard sheet size, avoiding material waste from non-standard cutting.
On color choice, don’t blindly chase the latest trend. Green solder mask might be ordinary, but the process is mature and tolerance control is solid. Switching to a flashy bright color might look nice on the surface, but if you run into color variation or alignment deviation, the rework time cost far exceeds that small price difference — after all, a circuit board is meant to be used, not to win a beauty contest. Take white solder mask, for example — it’s extremely sensitive to curing temperature and exposure time, with batch-to-batch color tolerance of only ±5%, while green solder mask can tolerate up to ±15%. Light colors also demand a flatter substrate surface — even tiny surface irregularities get visually amplified, increasing the rejection rate at cosmetic inspection.

What I fear most is a design that tries to save money at every single step — compressing hole spacing, thinning copper, only to discover a reliability problem during final assembly and have to start over — a loss large enough to cover three batches of boards. I’d now rather spend more time upfront running simulation than stare blankly at scrapped boards later. Simulation analysis can expose potential problems ahead of time — for example, thermal simulation can predict that 1oz copper thickness under high current runs 40°C hotter than 2oz, and mechanical simulation can reveal the stress concentration a 0.2mm hole spacing produces under thermal expansion. This kind of virtual validation costs only a tenth of an actual prototype run, yet avoids 80% of design iterations.
I’ve seen too many people, when discussing PCBs, focus only on the final number on the quote sheet — that’s actually a bit backwards. What genuinely determines how much you spend is often not the haggling during procurement — it’s the seemingly insignificant decisions you make while drawing the design. For example, once our team, chasing higher signal integrity at the design stage, chose a high-performance substrate, and downstream cost shot up 40% directly, forcing us to re-evaluate the balance between performance and cost.
Choosing a base material is like laying a foundation for a building — different materials produce a dramatically different overall construction cost and stability. The price gap between ordinary FR-4 and a high-frequency material can be several times over, but a lot of times, the product doesn’t actually need that extreme a level of performance — it’s purely a designer’s habit.
Something many people easily overlook is how directly PCB area affects cost. Sometimes a slight layout adjustment saves a substantial chunk of board fee. I remember a project that originally needed panelization, and by later optimizing component arrangement, we achieved single-board production — that alone cut 15% of cost. Also, setting trace width and spacing overly conservatively increases manufacturing difficulty, and the factory naturally passes that hidden cost back into the quote.
Surface-finish process is another area worth thinking through carefully. Some people blindly chase the newest technology while forgetting to consider the actual application scenario. Once, a client insisted on immersion gold when immersion tin fully met the requirement — wasting 20% of the budget for nothing. These details often matter more than any amount of haggling at the negotiation table.
Test-point placement quietly affects cost too. Densely packed test points mean more drilling time and material loss, while a reasonable testing strategy guarantees quality without letting production cost spiral out of control.
At the end of the day, controlling cost isn’t about pressing on price — it’s about planning ahead. When you genuinely understand the economics behind every design decision, you’ll find cost control is actually a systems-engineering challenge — one that starts the moment you draw the very first line.
There are always seemingly insignificant small details in PCB design that quietly affect final cost. I’ve seen quite a few engineers, chasing extreme performance, set parameters especially strict, only to find PCB Cost far higher than expected. In reality, a lot of the time, conventional applications simply don’t need that high a specification.
Take board-material thickness, for example — many people habitually choose 1.6mm, which is indeed the most common standard value. But if you carefully calculate structural-strength requirements, you might find 1.2mm or 2.0mm actually fits better. Once, working on an industrial-equipment enclosure, we originally planned to use 1.6mm board material, and later found that switching to 2.0mm let us eliminate reinforcement ribs while still guaranteeing rigidity — overall cost actually dropped. In reality, different board thicknesses show notable differences in raw-material cost and machining difficulty — for example, thinner board material is more prone to warping during lamination, while thicker material causes more drill-bit wear. Evaluating this ahead of time through structural simulation often reveals the most cost-effective solution.
Hole-diameter design is another easy trap to fall into. Many factories today can make 0.2mm micro-holes, but is it genuinely necessary? A smart-home project I handled got burned exactly this way. The designer made every via 0.25mm, and yield never climbed during volume production. We later changed non-critical-position holes to 0.3mm — the board area grew slightly, but overall, we saved a noticeable amount per board. This is because micro-hole diameters place extremely high demands on drill-machine precision and drill-bit lifespan, and plating-solution flow inside a micro-hole is poor, easily causing uneven hole-wall plating. Appropriately enlarging ordinary via diameter significantly widens the production-process window.
Trace spacing follows a similar logic. Some people always like setting trace width and spacing at 4 mil, when ordinary digital circuits are fully served by 6 mil. I remember once, during a revision, we relaxed most signal-trace spacing from 5 mil to 7 mil, and the factory directly quoted us a lower pricing tier. This adjustment not only didn’t affect performance — it actually improved production yield. Looser trace spacing means a higher fault-tolerance rate during etching, reducing short-circuit risk caused by exposure shift or uneven etching. For digital signals under 100MHz clock frequency, this kind of adjustment typically doesn’t cause signal-integrity issues.
Surface-finish choice needs to be considered even more carefully alongside the actual application scenario. Immersion gold looks nice, but it costs considerably more than hot-air solder leveling. We ran a comparison test — in a temperature-and-humidity-controlled environment, OSP-treated boards still worked normally after two years. Unless it’s an application requiring frequent insertion and removal, or wire-bonding needs, there’s genuinely no need to spend the extra money. For example, consumer-electronics products typically don’t have chips replaced frequently after shipping, and adopting OSP not only reduces surface-finish cost by about 30%, it also avoids the black-pad issue that immersion gold can sometimes cause.

At the end of the day, PCB design needs to find the balance point between performance and cost. Sometimes relaxing a few parameters slightly not only doesn’t affect function — it actually makes production run more smoothly. The key is understanding the cost behind every decision, rather than blindly chasing high specification.
Oh, and recently, while reviewing a consumer-electronics-product proposal for a friend, I noticed something interesting: they’d originally planned to use an eight-layer board to meet EMC requirements, and we later solved the problem with a six-layer board plus two ferrite beads by optimizing the layout instead. This kind of case shows that sometimes creative thinking beats stacking parameters. For example, placing sensitive signal lines on an inner layer with added ground shielding, or adjusting power-plane partitioning to reduce loop area, is often more economical and effective than simply adding more layers.
Every project has its own unique background of needs — what matters is keeping a flexible design mindset. You can’t sacrifice reliability to save money, and you shouldn’t pay for performance you don’t need. Finding that just-right balance point is really the most interesting part.
I think the most compelling part of hardware design is exactly this ongoing process of weighing trade-offs.
Every time I see a board I designed meet requirements while keeping cost under control, I feel a genuine sense of accomplishment.
That’s probably the joy of being an engineer!
I’ve seen too many teams oversimplify PCB cost control as simply negotiating down procurement prices. Every time I see them going back and forth comparing three quotes, I can’t help but smile — that’s really not the key to solving the problem. What genuinely affects cost is often something already decided at the design stage.
I remember a project team complaining to me last year that their boards were too expensive. Opening the design file, it became clear right away — chasing what they thought was optimal performance, they’d stacked the layer count up to eight. Actually, carefully analyzing the signal flow reveals six layers were entirely sufficient. This kind of over-design-driven cost increase can’t be clawed back later through supplier price negotiation.
A good designer should be like an experienced chef, knowing how to reasonably combine ingredients. On one of our projects, we once tried separating two circuits with different process requirements into two separate boards, and it actually turned out cheaper than forcing them together. This kind of flexible thinking requires a designer to have a solid enough understanding of manufacturing process, not just the ability to draw a schematic.
Speaking of supply chain, a lot of people think finding a low-price supplier settles everything. We got burned this way once — a small factory’s quote was genuinely tempting, but the first batch of boards had a micro-short-circuit problem that delayed the entire project by two weeks. We later stuck with a factory whose unit price was somewhat higher but whose delivery was rock-solid every single time — that reliability itself is a form of cost savings.
Actually, the most effective cost control often comes from cross-department collaboration. Our company now requires hardware engineers to regularly visit the factory and talk with production staff to understand the latest process limitations and capability boundaries. One young engineer came back and uniformly adjusted via dimensions by 0.1mm — that small change improved our board’s pass rate on a high-speed pick-and-place machine by 15%.
Sometimes lowering cost actually requires increasing upfront investment. We’re currently rolling out design standardization — just building the component library alone took three months, but afterward, new-project design cycles shortened by 40%, and because package dimensions got standardized, board-material utilization also improved noticeably.
Genuine, lasting cost advantage comes from the whole team’s shared understanding of value creation, not obsessing over a few cents of difference on every component. When we shift attention from pure price to overall efficiency, we actually discover a lot more hidden opportunity.
I’ve always felt a lot of people understand PCB cost too narrowly. Every time I see someone carrying a drawing around comparing prices everywhere, I find it genuinely interesting — they might not realize what actually affects the price most is their own design habits.
A client came to me last week with a design, complaining that someone else quoted 30% cheaper for the exact same board. Looking at it, the answer was immediately clear — he used an especially complex solder-mask opening design and required ultra-fine traces on FR-4 material. Just the screen-plate-making step for a design like this takes two extra days. I told him this isn’t a material-cost issue — it’s a process-cost issue.
Actually, PCB cost was never determined by a single factor. Sometimes, to save a few cents on board-material fee, choosing ordinary FR material backfires badly. I’ve seen too many cases where an inappropriate substrate choice led to an entire batch of boards being scrapped. Someone who genuinely understands the business focuses on the overall solution rather than agonizing over a single component’s price.
Lead time is genuinely interesting too. A lot of people assume expediting just means paying a bit more shipping — actually, it’s far more than that. A sudden rush order inserted into the production line means rescheduling — workers need overtime, and even raw-material procurement has to go through an expedited channel. These hidden costs are often far higher than the number visible on the surface.
Speaking of volume-driven economies of scale — they genuinely exist, but don’t expect them to solve everything. Once, I took on a five-thousand-piece order where the client assumed a large volume would drive the price down, only to find that because of special design requirements, the unit price actually came out higher than a small-batch order. The key is finding the optimal balance point for your specific project.
There’s a misconception in the industry right now — excessive focus on material unit price while overlooking the cost savings that design optimization can bring. Sometimes slightly adjusting routing rules or component layout saves a considerable amount of money — far more substantial than agonizing over which grade of FR material to use.
At the end of the day, PCB cost control is a systems-engineering challenge — you need to start factoring in manufacturability from the design end. Simple price comparison has no meaning — the key is finding a partner who understands your needs and can offer professional advice.
The spending on PCBs often strikes me as genuinely interesting. A lot of people jump straight into figuring out how to negotiate with a supplier or arrange some kind of volume discount. I think that’s useful, of course, but it might not be the most fundamental lever.
I prefer focusing attention on the design itself first.
Sometimes a seemingly minor design adjustment brings unexpectedly good results. For example, considering component universality a bit more during selection — not just performance parameters — often makes downstream procurement go far more smoothly and makes it easier to find a reliable partner.
I’ve found that building a stable relationship with a reliable supplier is far more practical than constantly shopping around for the best price.
This isn’t just a price matter — more importantly, they understand your needs and can offer practical advice when you run into a production challenge. That kind of value is hard to measure with PCB Cost alone.
Speaking of optimization, a lot of people fall into a misconception of chasing extreme low cost.
I went down that path myself once, only to find the money saved didn’t even cover the effort and time later spent resolving quality issues.
Genuinely effective optimization should be balanced — controlling cost on one hand while ensuring product reliability and manufacturability on the other — you can’t plant a hidden risk just to save money.
Actually, every conversation with a factory is a learning opportunity — they’ll tell you which designs are prone to problems in actual production, and which materials are currently in tight supply and might need an alternative — this information is critical for controlling overall cost.
Rather than treating procurement as a simple transactional step, it’s better to think of it as part of the entire product-development process — that mindset shift changes everything, and it manages cost far more effectively.
Every time I see someone agonizing over PCB cost, I can’t help but smile. They always assume spending more automatically buys a better board. In reality, a lot of the money spent genuinely isn’t necessary.
I’ve seen too many engineers design especially fine trace widths, as if that makes them look more skilled. But do you know what a factory thinks when they see a design like that? They just see it as a hassle. Trace width that’s too fine means lower yield. To protect their margin, the factory has no choice but to raise their quote.
Anyone who genuinely understands this business knows how to balance complexity and cost. Sometimes relaxing a requirement slightly actually saves a meaningful amount of money. For example, changing trace width from 4 mil to 6 mil might barely affect performance, but cost can drop twenty to thirty percent.
Once, a client insisted on chasing extreme performance specs. The resulting board ended up more than double the budget. In reality, his application scenario didn’t need that high a spec at all.
A PCB isn’t better just because it’s more complex. You need to consider actual requirements. A simple, reliable board is often more practical than a flashy, over-engineered design.
I’d suggest thinking clearly about what functionality you actually need before starting a design. Don’t let flashy-but-hollow technical parameters lead you astray.
Sometimes the simplest solution is actually the most cost-effective.
Remember this: every special process you add is adding to the cost. Blind and buried vias, impedance control — these all require extra process steps and equipment investment.

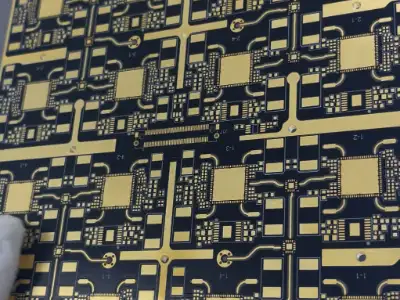

So next time you design a PCB — for anything from a simple consumer board to something as connectivity-dense as an IP PBX System PCB — it’s worth asking yourself: is this level of complexity genuinely necessary?
