Hybrid Inverter PCB: Why Heavy Copper Thickness Decides Whether Your Energy Storage System Survives

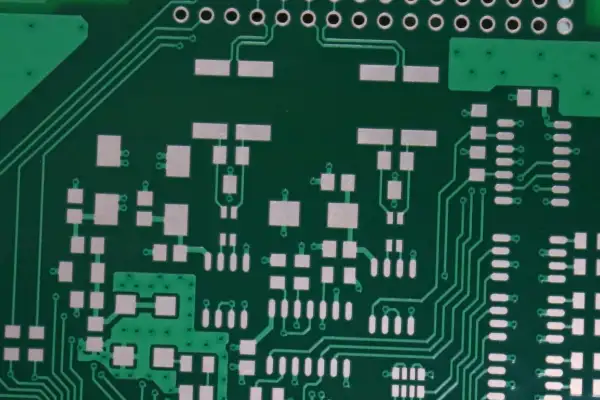

Why Copper Thickness, Not Circuit Design, Decides Whether an Inverter Board Survives

Back when I was working on inverters, I always assumed a circuit board was just a carrier — solder the chips on, make it run, done. It took actually building an off-grid energy storage project to get a real reality check. A Hybrid Inverter PCB is nowhere near a simple matter of connecting traces — it has to shuttle tens or even hundreds of amps back and forth, with battery charge/discharge, solar input, and AC output all crammed onto a single board. On one prototype test, less than thirty minutes off-grid under load, a section of the board hit over 100°C. After digging into it, the problem traced back to copper thickness. That supplier had repeatedly claimed to be a professional Heavy copper PCB supplier, but a cross-section of the finished board showed uneven copper foil thickness, with the critical trace regions nowhere near the promised 4oz. From then on, I understood: when choosing a Heavy copper PCB manufacturer, you cannot just take their word for it — you need to physically visit their plating line and check whether they actually run thermal cycling tests.

In an energy storage system, the inverter is where the real heavy lifting happens, and the PCB is its skeleton. Many people, during component selection, focus entirely on the IGBTs and MOSFETs while overlooking the underlying current-carrying capacity. Especially in off-grid mode, the inverter has to pull large current from the battery side and invert it to AC — if the busbars and phase traces on the PCB are not thick enough, or thermal design has not kept up, the whole system is a paper tiger no matter how impressive the rated power looks. I later switched to a supplier with over a decade of experience in heavy copper boards, who built the Hybrid Inverter PCB with 6oz copper thickness plus embedded copper block processing. At the same power level, thermal performance was completely different, and overall system efficiency held steady. In energy storage products, reliability is earned through grinding — and a circuit board that can withstand current shocks is that unassuming yet absolutely critical baseline.

I have worked on several hybrid inverter projects, and my biggest realization is that the hard part is not the control algorithm — it is the hardware foundation, specifically that board.

Many people jump straight into discussing system architecture and multi-mode scheduling, but the first wall you actually hit once you start building is the PCB’s own current-carrying capacity. A Hybrid Inverter PCB is nothing like a grid-tied-only design — with a grid-tied unit you are only pushing power into the grid, and battery-side current is relatively gentle; but the moment you add off-grid output and battery charge/discharge, current routinely climbs into the hundreds of amps, and if the copper foil on that bidirectional DC-DC section is too thin, heat builds up and drags the entire board down with it. So when we later chose a Heavy copper PCB manufacturer, price was not the deciding factor at all — what mattered was whether they could reliably deliver 4oz or even 6oz copper, how they handled vias, and whether copper thickness uniformity held up. Some suppliers claim they can do heavy copper, but a cross-section of their samples shows outrageous copper-thickness variation at the edges — that kind of board, once installed in an inverter, becomes a hidden hazard within three months.

The battery interface is even more sensitive. The instant off-grid load kicks in, current rises alarmingly fast, and if the PCB layout is even slightly unreasonable, parasitic inductance can pull the voltage spike beyond the safe range. That is when you realize a reliable Heavy copper PCB is not a nice-to-have — it is a matter of survival. I have seen plenty of teams with excellent software and algorithms whose hardware design still clings to grid-tied-inverter habits, assuming that as long as the copper foil is “enough,” it is fine, and treating BMS isolation and the power loop as just another routing task. In the end, either battery overcharge protection fails, or the load drops out momentarily during an off-grid switchover. At the end of the day, the battery-management side of an inverter demands far more from the PCB than the solar MPPT side does. So now, whenever I start a new project, I always sit down with the Heavy copper PCB supplier and thoroughly discuss the specific stack-up, copper thickness, thermal copper areas, and via current capacity before talking about anything else. None of this is written in any textbook, but every single point has been learned the hard way.

Anyone in power electronics knows that a hybrid inverter’s PCB is genuinely not something an ordinary board can handle. Just the DC bus on that board alone routinely carries current densities of several dozen amps — if thermal dissipation cannot keep up, the whole system stalls. I have seen far too many designs where the schematic looks beautiful, and the moment the prototype comes back for testing, the copper foil scorches and discolors — and that is even with 2oz copper thickness. After that, I set myself an ironclad rule: any board involving the main power loop must go to a shop that can do heavy copper PCB, with copper thickness starting at a minimum of 4oz.

Some might ask why obsess over copper thickness — the reasoning is actually simple, but most people have never really run the numbers. In a hybrid inverter, the current path from solar input, through battery charge/discharge, to DC-AC conversion, is quite long and often bidirectional. You cannot rely on traditional single-point grounding or simple copper pours to solve that. The moment impedance along the current path rises even slightly, you not only get heat buildup — switching noise couples into the control loop, causing sampling errors or even blown transistors. I once got burned on a board — it used an Infineon CoolSiC MOSFET with fast switching speed, but purely because of excessive parasitic inductance in the PCB, ringing pushed Vds to nearly twice bus voltage and the part was destroyed on the spot. We later switched to a heavy copper PCB supplier, pushed copper thickness to 6oz, and re-optimized the stack-up and routing, which finally suppressed the ringing. That manufacturer genuinely had a handle on lamination and interlayer alignment — it is not something you solve just by plating on a few more layers of copper.

On the subject of topology, many hybrid inverters today use three-level or ANPC structures — for instance, some models from Sungrow and Huawei — and this kind of topology places extremely high demands on PCB symmetry. If copper thickness is uneven on one side, or thermal distribution is uneven, the board will warp over long-term operation, even cracking solder joints. This is not an exaggeration — I once disassembled a three-year-old unit and found that PCB deformation had widened the thermal interface gap for the IGBT module, eventually triggering overheat protection. So heavy copper PCB is not just about thick copper — you also need to consider Z-axis thermal expansion coefficient matching with the ceramic substrate or aluminum substrate. A good manufacturer controls resin flow and cure profile properly during lamination — something many small shops simply cannot achieve.

One more point: many people think an inverter PCB only needs attention on the power section, and the control section can be done casually. That is completely wrong. A hybrid inverter has to simultaneously manage solar, battery, grid, and load — four ports — and the control chip’s ADC sampling accuracy is directly affected by ground bounce noise. In my designs, I force a separation between power ground and signal ground, joined only at a single point at the end, and that connection point is placed near the negative terminal of the heavy-copper DC bus capacitor. Many textbooks never mention this positioning choice, but in actual testing, being off by even a little bit can change ripple by dozens of millivolts. These all sound like minor details, but they are exactly what determines whether an inverter runs stably for ten years or fails within two.

When choosing a heavy copper PCB supplier now, I typically go visit the factory first and inspect their drilling and plating lines. Some shops boast about doing 10oz, but a cross-section reveals uneven via-wall copper thickness, sometimes even cracks at the corners. You will never catch this unless you personally supervise it. A good manufacturer uses pulse current during plating to deposit copper more uniformly inside the vias, and afterward runs thermal stress testing — after several hundred cycles, via resistance change cannot exceed 10%. I always require these test reports to be shipped with the board — otherwise, no deal.

At the end of the day, a hybrid inverter PCB is not a simple circuit board — it is a complex component integrating thermal, electrical, and mechanical stress. The deeper you understand the topology, the better you know where to thicken copper, which substrate material to use, and which manufacturer to choose. Sometimes a reliable heavy copper PCB supplier is worth more than spending a few thousand extra dollars on a better power device.

Case Study: Chasing a Copper Foil Fire on a 5kW Off-Grid System

A couple of years ago, while helping a friend build a small off-grid system, I first truly realized how directly PCB copper thickness determines whether a project succeeds or fails. That project used a 5kW hybrid inverter with a DC bus designed around 380V, a fairly standard parameter in the industry. But the problem was on the battery-side DC-DC converter — the current was simply too large. With a 48V battery system, DC-side current at full power easily exceeded 100A, and if the PCB traces were not handled properly, the voltage drop became severe and the board ran hot, even scorching the copper foil once. We initially assumed it was a cooling problem, but after disassembling the inverter, we found the PCB’s copper thickness was only 2oz — nowhere near enough to sustain that kind of continuous heavy current.

After getting burned by that experience, I started paying particularly close attention to copper thickness design in inverter PCBs, especially the sections in hybrid inverters that carry DC bus current and battery current. The hybrid inverter’s main board — the Hybrid Inverter PCB — is significantly more complex than an ordinary solar inverter board. It has to simultaneously handle solar MPPT boost conversion, battery charge/discharge, and DC-to-AC inversion, cramming power transistors, inductors, capacitors, and sampling circuitry onto one crowded board. The DC-side current path is short, but current density is high — if the PCB does not have sufficient copper thickness, heat concentrates in those narrow traces, and over time either solder joints melt or copper foil lifts.

As I worked with more suppliers, I gradually built up a set of standards for selecting a Heavy copper PCB manufacturer. A heavy copper board is not simply about stacking thicker copper foil — it involves etching precision, lamination, solder mask, and thermal design working together. I have run into some Heavy copper PCB suppliers whose sample was nominally 4oz but actually measured only around 3.5oz, with poor copper thickness uniformity and severe side etching at trace edges — which introduces extra parasitic inductance in high-frequency switching circuits, causing ringing in the switching waveform and dragging efficiency down noticeably. A genuinely reliable manufacturer will help you reinforce copper thickness specifically along critical current paths — for example, locally thickening to 6oz or even 8oz — while keeping the signal layer at conventional copper thickness, which controls cost while still solving the high-current problem.

In a hybrid inverter, how the DC side is connected also directly affects PCB design. The DC bus is not a simple copper wire — on the PCB it is a large sheet of copper extending from the battery end all the way to the inverter bridge’s DC input. This path has to withstand significant ripple current — if the copper is not thick enough, equivalent series resistance rises, and heat and losses both climb. I have seen designs that, to save cost, made the DC bus copper too narrow, and in actual operation an infrared thermal image showed that trace glowing bright, running thirty or forty degrees above ambient. That kind of board simply will not last.

When selecting a Heavy copper PCB supplier, I never look at price alone. Heavy copper boards are harder to manufacture than ordinary boards, with lower yield, and suppliers with suspiciously low quotes usually cut corners somewhere in the process. I once watched a manufacturer’s production line where, after etching a heavy copper board, they used a specialized polishing process on the trace edges, making the cross-section closer to a rectangle rather than a trapezoid — significantly improving current-carrying capacity. You would never spot this detail without being on-site. So I now lean toward manufacturers willing to lay out their process details openly, rather than ones who just send you a quote and call it done.

The inverter as a whole is a single system, and the PCB is only one link in that chain — but if that link breaks, the entire system goes down. Across the several hybrid inverter projects I have handled, the ones where the DC-side high-current section used 4oz or thicker copper, with generous trace-width margin, consistently showed much better long-term stability. The ones still using 2oz or even 1oz copper drag the whole system down no matter how big the heatsink or how powerful the fan — the board itself is the bottleneck. So on later designs, from the DC bus capacitor to the inverter bridge, I always require heavy copper and keep traces as short and direct as possible, minimizing bends and vias.
