Blood Analyzer PCB Design: How Signal Integrity, Chemical Resistance, and Manufacturing Precision Determine Diagnostic Accuracy

Ground Plane Architecture: The Detail That Makes or Breaks Signal Cleanliness

Medical electronics is a fascinating domain — particularly those boards that look unremarkable but have extremely high technical content. What is used in blood analysis equipment is a good example: many people assume it is just a circuit board, but the depth of complexity inside is significant. The stability requirements for this category of product are genuinely demanding — demanding in ways that cannot simply be resolved by finding any convenient factory.

The key principle is this: a PCB in a medical device and a PCB in consumer electronics are entirely different categories. Consumer electronics prioritize peak performance and low cost; an occasional glitch is resolved with a restart. Medical devices must guarantee zero errors during long continuous operation, because the data directly determines diagnosis. In a blood analyzer, the board carries both the analog circuit portion that processes faint biological electrical signals and the digital circuit portion handling logic computation. If these two types of circuits share the same board without proper isolation design, they will interfere with each other easily.

I have seen early design proposals where these two sections were combined to save cost, resulting in severe data fluctuation — requiring a complete redesign of the board layout to resolve.

This is why more thoughtful designs now use multilayer PCB structures that physically separate different functional areas. The sensitive analog front end is placed on a dedicated layer, with a complete ground plane between it and digital noise sources. This does increase manufacturing cost somewhat, but for preserving data integrity, it is absolutely worthwhile.

On materials: many people think board materials are all roughly equivalent, but the performance differences between different materials are substantial. Standard FR4 performs acceptably in low-frequency environments, but once high-frequency signal transmission stability is required, its weaknesses are exposed. Its dielectric constant is not particularly stable, and its loss is relatively high — signal attenuation at high frequencies can be severe. For equipment that needs to accurately capture and analyze faint pulse signals, this is a critical limitation. For key signal paths, I tend to favor specialized high-frequency board materials. They cost more, but their electrical performance is far more consistent — ensuring that raw signals captured from the sensor reach the processing unit with minimal distortion, which is critical to the accuracy of subsequent analysis.

Environmental adaptability is another issue that is often overlooked. Medical device operating environments are genuinely complex. Laboratory air may contain volatile chemical reagents, and there is often humidity present. These factors gradually attack the PCB over time. If the surface protection is inadequate, pad oxidation or trace corrosion can produce poor contact or even short circuits. So beyond electrical performance at the design stage, PCB surface treatment and protective coatings must receive serious attention. Sometimes a reliable coating can dramatically extend the service life of the entire circuit board in a demanding environment — an investment that is very worthwhile in the long run.

Grounding Architecture That Treats Each Signal Domain as Its Own World

I have been thinking a lot about PCBs in medical devices recently. Many people assume the board is just a component carrier. In blood analyzers, that assumption falls apart quickly. The board is not dealing with stable current signals. It is dealing with faint electrochemical changes from biological samples, in an environment that may contain reagent vapors. This places completely different demands on the board’s materials and manufacturing process.

Think about grounding — many people assume connecting a ground wire to the enclosure is sufficient. In reality, it is far more complex. In a complex system like this, you may need multiple distinct ground domains: a clean ground for sensitive analog circuitry, a noisier ground for digital chips, and a power ground for motor drivers. If these are carelessly connected together, the switching noise from digital circuits will bleed into the analog sections and overwhelm those weak detection signals.

The correct approach is to route each ground independently within its own zone, and merge them at only one carefully chosen location on the PCB — somewhat like different traffic flows in a city that ultimately merge through a well-designed interchange onto a main artery. Choosing that merge point carefully matters: it is typically placed close to the power input, in the location with the least interference.

Some designs, in pursuit of ultimate signal purity, will actually dedicate an entire internal copper layer as a shielding layer — wrapping the entire critical circuit zone like a roof over a building. This shielding layer must be properly grounded to actually work; otherwise it can itself become an antenna that collects noise rather than blocks it.

These details may sound tedious. But they are precisely what determines the device’s final performance. A well-designed Blood Analyzer PCB allows the instrument to maintain stable detection accuracy even in a noisy laboratory environment. A carelessly designed board can cause the entire product to fail at the final hurdle. This field is not about having the most innovative ideas — it is about having the deepest understanding of the details, and the most precise control over the manufacturing process.

Cleanliness, Traceability, and the Culture Behind Reliable Medical PCBs

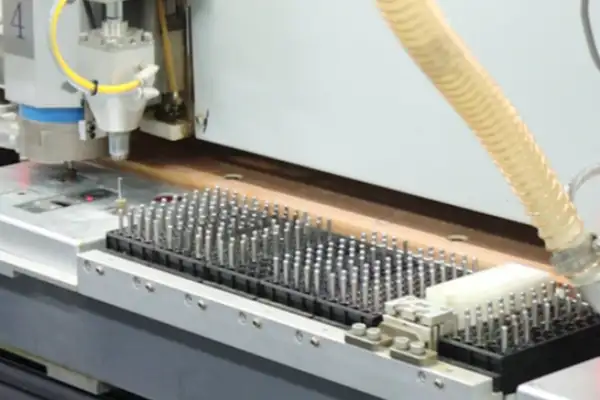

Many people assume that medical device PCBs differ from consumer electronics boards primarily in having a few extra certifications. That is not the point. I have seen many factories that cut corners in the multilayer PCB manufacturing process. They reason that it is inside the machine and nobody will see it — as long as it works, it is acceptable. This mindset is genuinely dangerous, because medical device circuit boards operate in conditions far more demanding than ordinary electronics, and must maintain reliable operation over extended periods.

ISO certification systems are sometimes treated as certificates to hang on a wall. The real value of ISO is that it establishes a traceable quality management process. From raw material procurement onward, every batch of board material and every roll of copper foil must have complete source documentation — records that are not just filled in casually, but remain accessible and verifiable for the entire product lifecycle.

The medical device industry has a distinctive characteristic: its regulatory chain is exceptionally long. A compliant Blood Analyzer PCB from design to shipment may pass through dozens of inspection stages, each with corresponding standards and documentation requirements. This is not bureaucratic complexity for its own sake. The medical domain genuinely cannot tolerate any degree of carelessness.

The best manufacturers I have worked with consider many details that ordinary factories overlook. The choice of dielectric material between layers directly affects signal integrity. Via treatment method affects long-term reliability. Surface treatment selection must account for both electrical performance and biocompatibility.

Many people may not realize this: the production environment requirements for medical device circuit boards are substantially stricter than for standard consumer electronics. While not every product requires a full cleanroom, strict environmental controls are still necessary — temperature and humidity must be stable, airborne particles must be monitored, and electrostatic discharge protection must be comprehensive. Humidity fluctuations in soldering areas can cause cold joints; sulfide compounds in the air can corrode precision pads. These microscopic defects gradually manifest as failures during long device service life.

Some manufacturers in the market claim their products meet various standards while actually doing only the minimum required for compliance. True quality consciousness must permeate every employee’s daily work — not simply preparing documentation for audits. Whether operators understand the physical rationale behind each parameter setting, and whether quality inspectors can proactively identify potential risk points in the process — these reflect actual capability that goes beyond paper compliance.

I have always believed that this work demands a sense of responsibility. We manufacture only a circuit board. But that board ultimately becomes an important tool through which a physician diagnoses disease. That sense of responsibility cannot be cultivated through a few certification certificates — it develops through maintaining a professional standard at every single detail over time. Consider what it means when a circuit board experiencing early failure from electromigration causes a slight bias in cell counts — potentially affecting the judgment of a patient’s anemia or signs of infection.

The best manufacturers engage deeply with customers at the design stage, exploring the application environment’s specific requirements. What conditions will the device operate in? How long does it need to run continuously? What interference sources might it encounter? The answers to these questions directly determine PCB design strategy and manufacturing process selection. For mobile devices used at the bedside, the board needs stronger vibration resistance; for large laboratory analyzers, the emphasis shifts to thermal management and signal interference rejection.
